Component Location

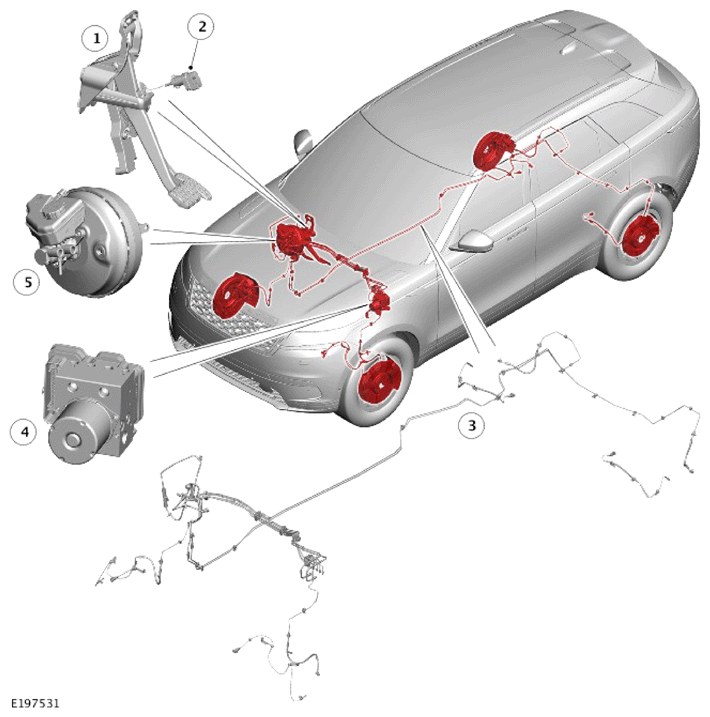

G14279954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake pedal
2 Brake pedal switch
3 Brake pipes and hoses
4 Anti-lock Brake System (ABS) control module
5 Brake master cylinder and brake fluid reservoir
