Overhead Console (G2017395): Removal

CAUTION:

Use a suitable trim tool.
Protect the surrounding trim to avoid damage.
Make sure that the tools and equipment are clean, free of foreign material and lubricant.

CAUTION: Take extra care not to damage the wiring harnesses.

NOTE: Do not remove the component at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

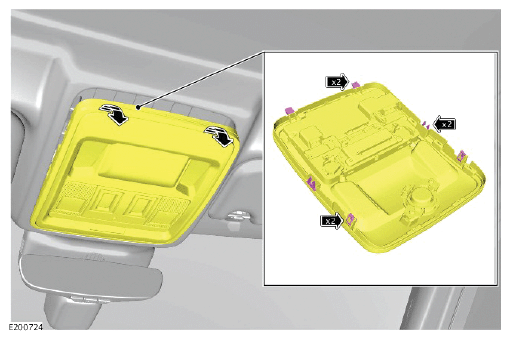

Release the front overhead console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

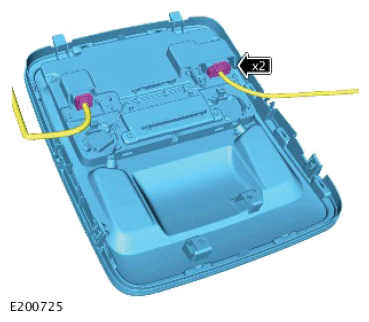

- Disconnect the electrical connectors.
- Remove the front overhead console.
NOTE: Only carry out the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

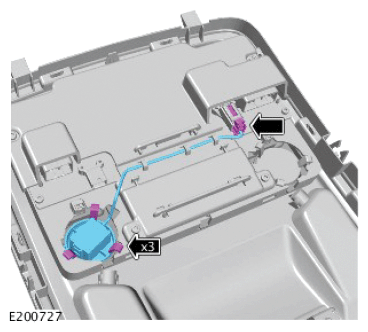

- Disconnect the electrical connector.
- Remove the voice control microphone.
