Lower Steering Column Trim (G2133018): Installation

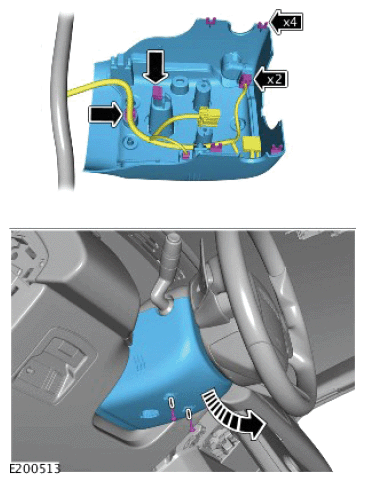

  1. G12564181Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the steering column lower trim panel.
    3. Install the 2 retaining bolts and the retaining clip.
  2. Install the steering column upper cover.

    Refer to: UPPER STEERING COLUMN TRIM
