Instrument Panel Lower Trim Panel (G2018928): Removal

Remove the floor console upper trim.
Refer to: FLOOR CONSOLE UPPER TRIM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the driver side footwell trim panel.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the door weatherstrip.
CAUTION: Take extra care not to damage the clips.

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

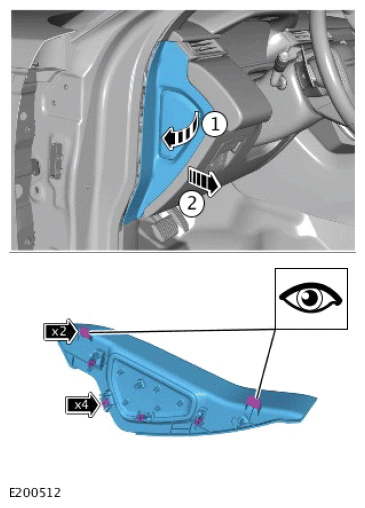

Remove the instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering column lower cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering column upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

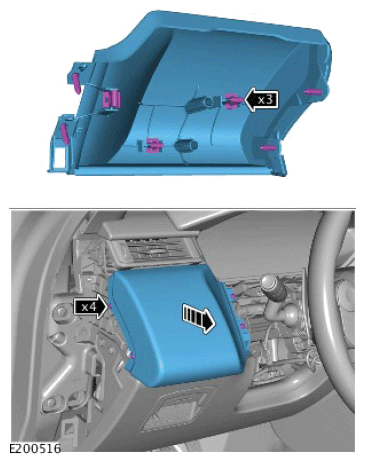

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

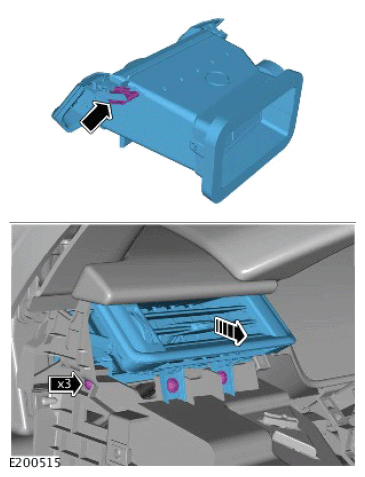

Remove the driver side face level vent.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

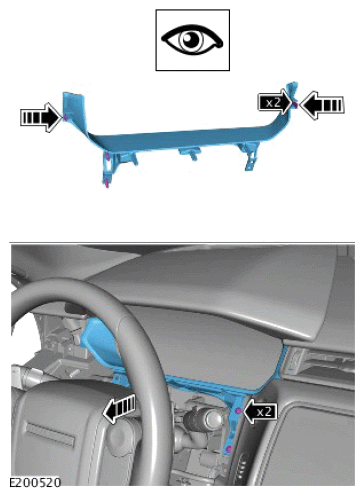

Remove the instrument cluster trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

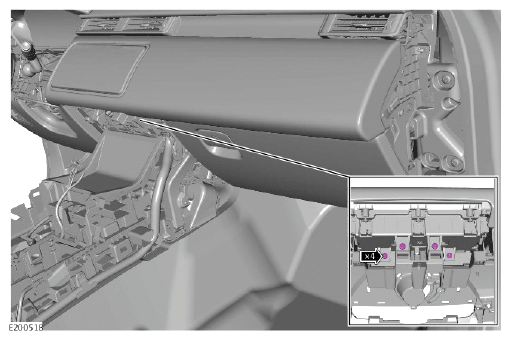

Remove the 4 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 screws.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel passenger side moulding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

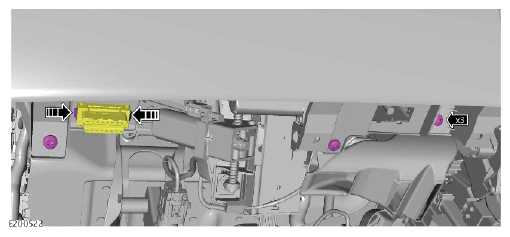

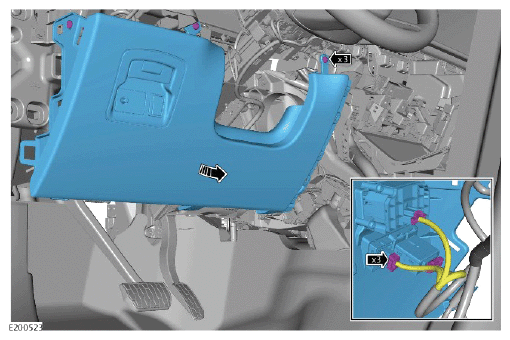

- Remove the 3 screws.
- Release the on-board diagnostic connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

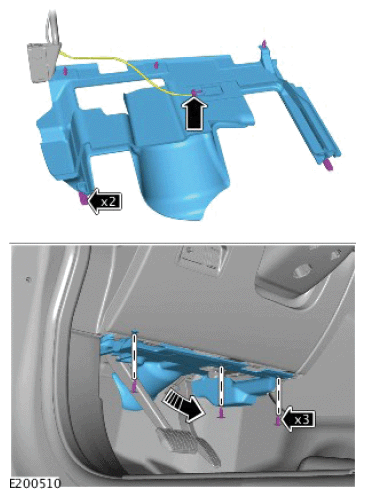

- Disconnect the 3 electrical connectors.
- Remove the instrument panel lower trim.
NOTE: Only carry out the following step(s) if the new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

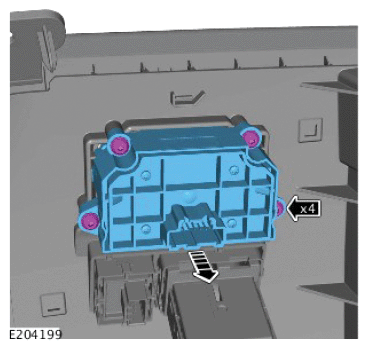

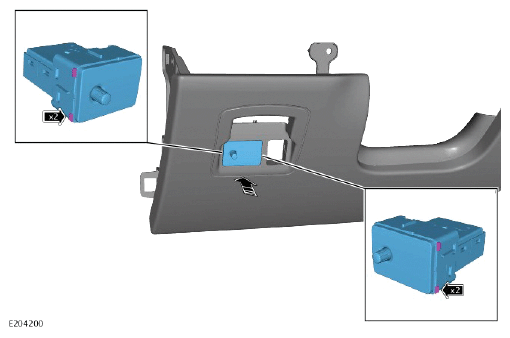

Remove the Electric Park Brake (EPB) switch.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

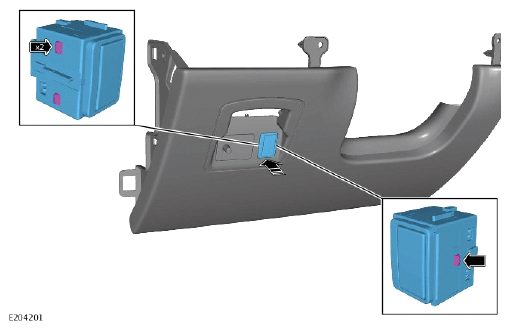

Remove the tailgate release switch.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the auxiliary lighting switch.
