Instrument Panel Lower Trim Panel (G2018928): Installation

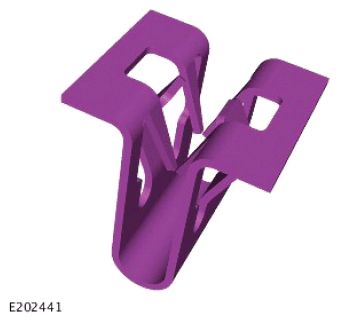

NOTE: Install the trim retaining clips in the moulding prior to installing the components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the auxiliary lighting switch.
Install the tailgate release switch.
- Install the Electric Park Brake (EPB) switch.
- Tighten the 4 screws.
- Install the instrument panel lower trim panel.
- Connect the on-board diagnostic connector.
- Tighten the 6 screws.
  Torque : 5 Nm
CAUTION:
- Take extra care not to damage the component.
- Inspect the clips and replace if damaged.
- Connect the 3 electrical connectors.
- Install the instrument panel passenger side moulding.
- Install the instrument cluster trim panel.
- Tighten the 2 screws.
  Torque : 5 Nm
Tighten the instrument panel passenger moulding 6 screws.
Torque : 5 Nm
- Install the driver side face level vent.
- Tighten the 3 screws.
  Torque : 5 Nm
- Install the instrument panel outer trim panel.
- Tighten the 4 screws.
  Torque : 5 Nm
Install the steering column upper cover.
- Install the steering column lower cover.
- Connect the 2 electrical connectors.
- Tighten the 2 screws.
CAUTION: Take extra care not to damage the clips.

NOTE: Repeat the step for the other side.

Install the instrument panel end trim panel.
NOTE: Repeat the step for the other side.

Position the door weatherstrip.
- Connect the electrical connector.
- Install the driver side footwell trim panel.
- Tighten the 3 screws.
Install the floor console upper trim.
Refer to: FLOOR CONSOLE UPPER TRIM
