Ignition Switch (G2218893): Removal

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Adjust the steering wheel to the lowest position.
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

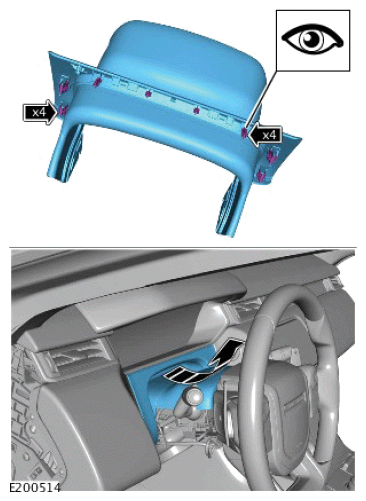

Remove the steering column upper trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

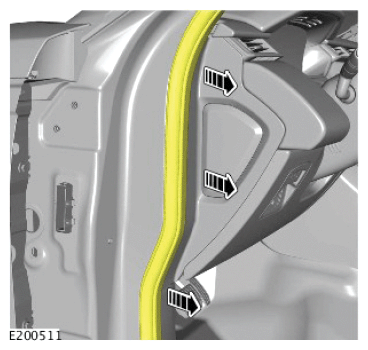

Release the door weatherstrip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

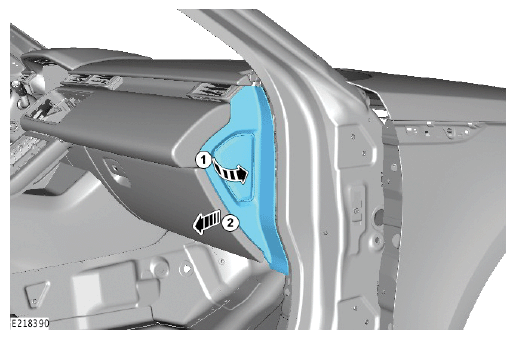

Remove the instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

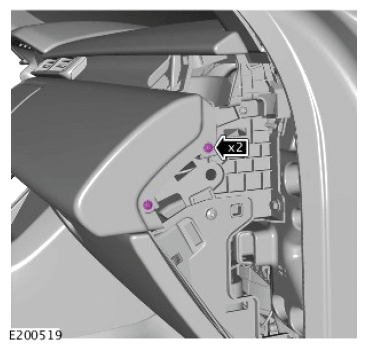

Remove the retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

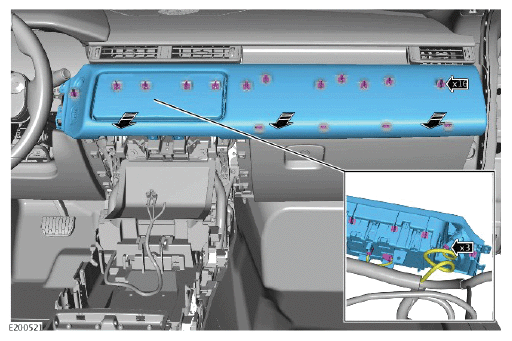

- Remove the instrument panel passenger side moulding.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

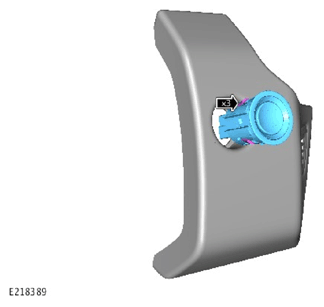

Remove the ignition switch.
