GLOVEBOX (G2135526): Removal

NOTE:

This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the floor console upper trim.
Refer to: FLOOR CONSOLE UPPER TRIM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the driver side footwell trim panel.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the door aperture seal.
CAUTION: Take extra care not to damage the clips.

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering column lower cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering column upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the driver side face level vent.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument cluster trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 screws.
CAUTION: Take extra care not to damage the component.

NOTE: Inspect the clips. Replace if necessary.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel passenger side moulding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

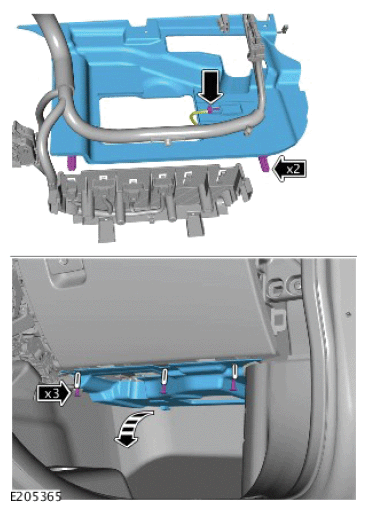

Remove the passenger side footwell trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

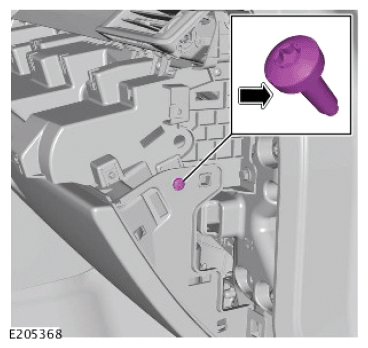

Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

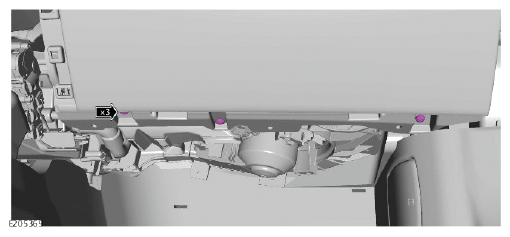

Remove the 3 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

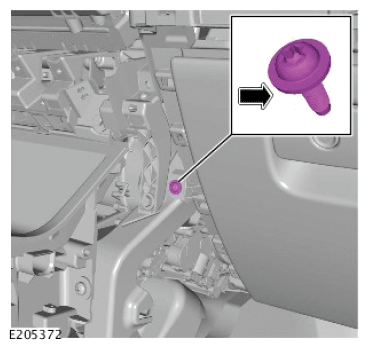

Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

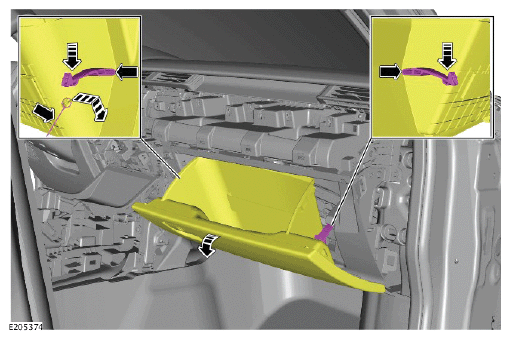

Open the glovebox.
CAUTION: Take extra care not to damage any component.

NOTE: Make sure the glovebox damper is released from its hook.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

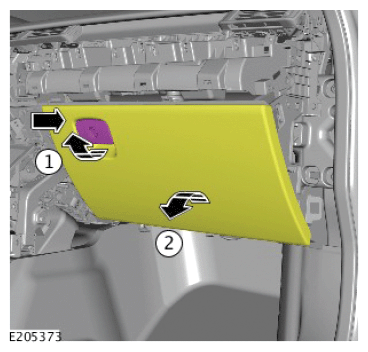

Open the glovebox to the service position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

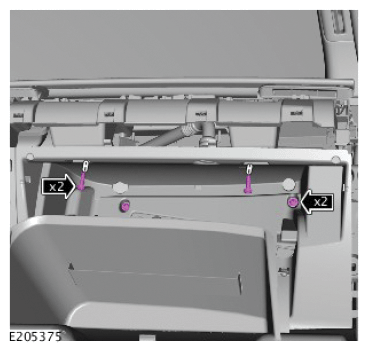

Remove the 4 bolts.
CAUTION: Make sure that excessive force is not used to release the glovebox. Failure to follow these instructions may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

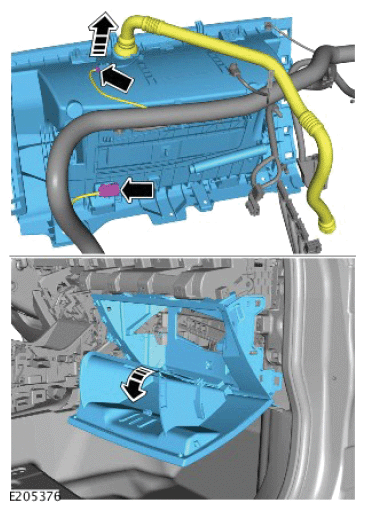

- Remove the glovebox.
- Disconnect the 2 electrical connectors.
- Disconnect the glovebox cooling duct.
CAUTION: Take extra care when handling the component.

NOTE: Only do the following step if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

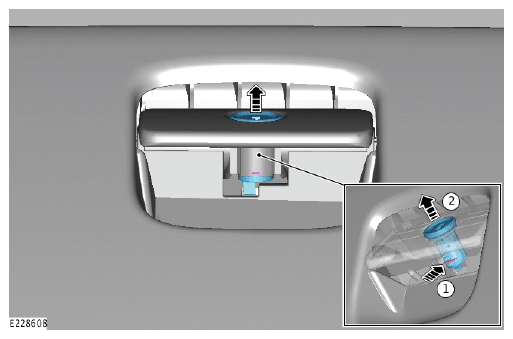

- Release the pin.
- Remove the lock.
