Daytime Running Lamps (G2006431): Description

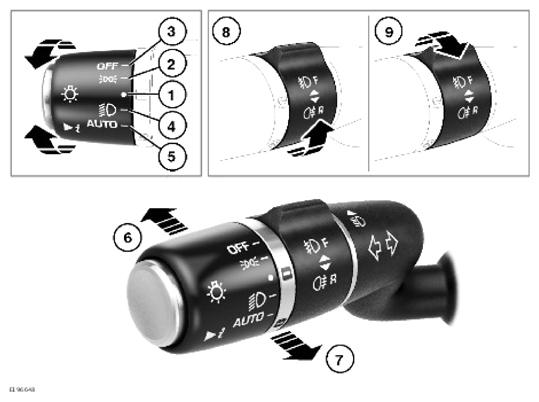

G14071873Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Neutral position
2 Side lights on
3 Off position
4 Headlights on
5 Auto lights
6 High beam
7 High beam flash
8 Front fog lamps on
9 Rear fog lights on

The lighting control switch returns to the neutral position when released.

For additional information, Refer to: EXTERIOR LIGHTING
