Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel fired booster heater heat exchanger.

    Refer to: FUEL FIRED BOOSTER HEATER HEAT EXCHANGER .

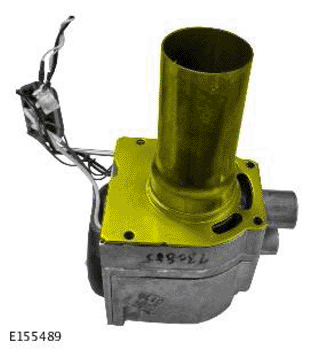

  2. G11701648

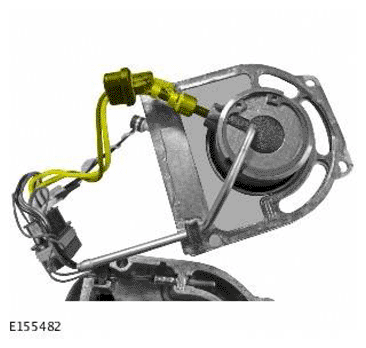

  3. G11701649

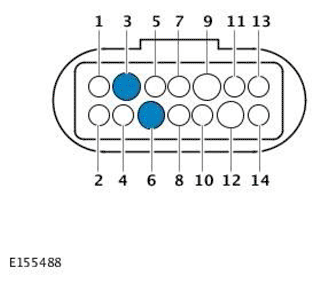

  4. NOTE: Remove the terminals from the connector as indicated in order to replace the component.
    G11701650
