Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS .

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .

    Vehicles with business seats

  2. G11708345
  3. G11708346
  4. G11708347

    Torque Specification: 50 Nm

  5. G11708348
  6. G11708349

    Torque Specification: 50 Nm

    All vehicles

  7. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

    Vehicles with business seats

  8. G11708350

    Vehicles without business seats

  9. G11692582
  10. G11692583
  11. G11692584
  12. G11692585

    Torque Specification: 50 Nm

    All vehicles

  13. G11708340

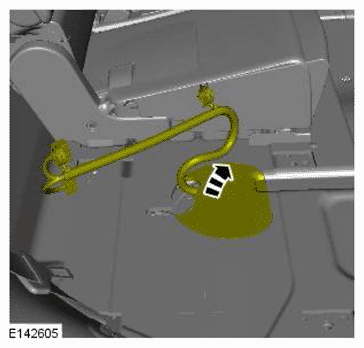

  14. G11708351

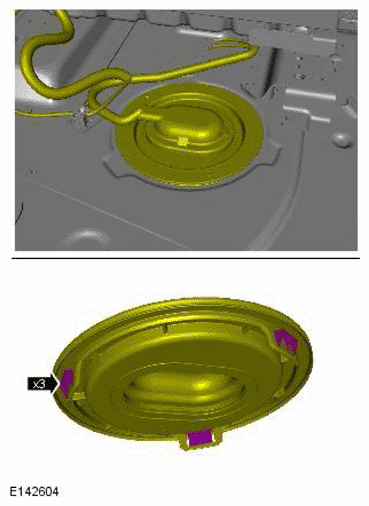

  15. G11708352

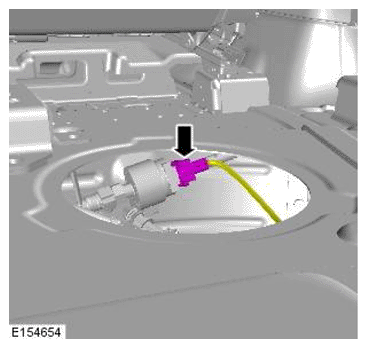

  16. G11701640
  17. CAUTION: Be prepared to collect escaping fuel.

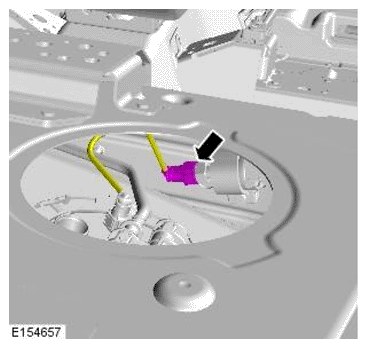

    G11701641
  18. CAUTION: Be prepared to collect escaping fuel.

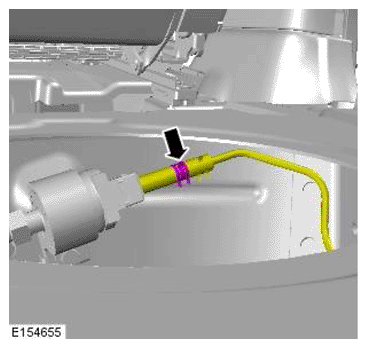

    G11701642

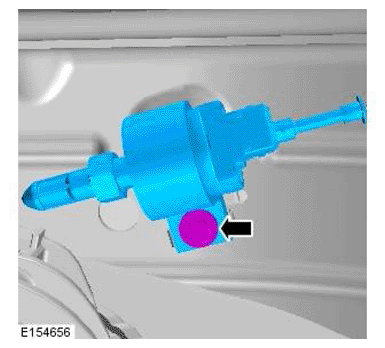

  19. G11701643

    Torque Specification: 9 Nm
