Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel fired booster heater combustion chamber.

    Refer to: FUEL FIRED BOOSTER HEATER COMBUSTION CHAMBER .

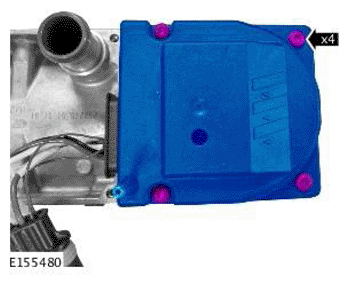

  2. G11701621

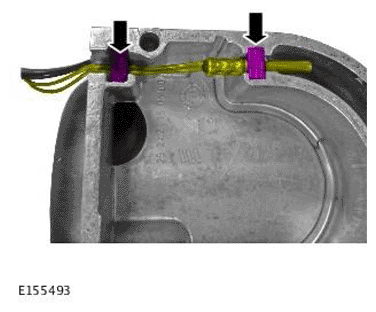

  3. G11701622

    Carefully release the flame sensor.

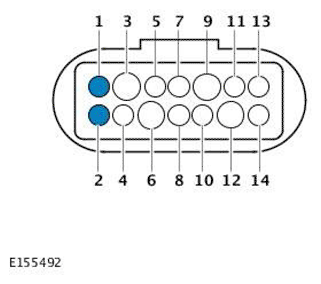

  4. G11701623

    Remove the flame sensor harness terminals from the electrical connector, make sure their positions are noted prior to removal.
