Removal And Installation: Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS .

  2. Remove the Fuel Fired Booster Heater (FFBH).

    Refer to: FUEL FIRED BOOSTER HEATER .

  3. CAUTION: Be prepared to collect escaping coolant.

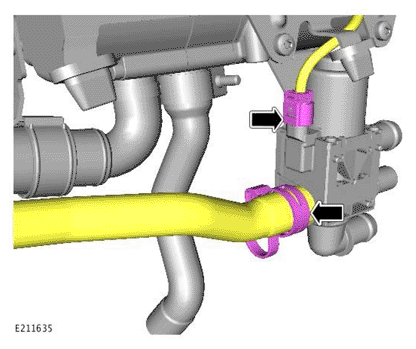

    G11701760
    • Release the coolant hose.
    • Disconnect the FFBH coolant changeover valve electrical connector.

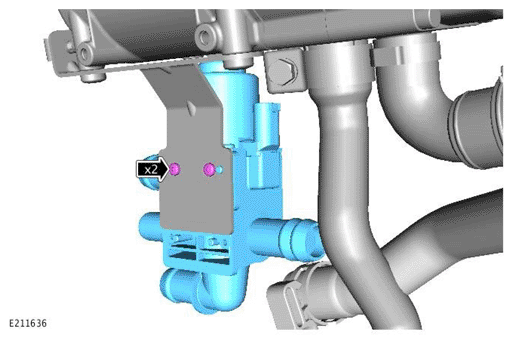

  4. G11701761

    Remove the FFBH coolant changeover valve.
