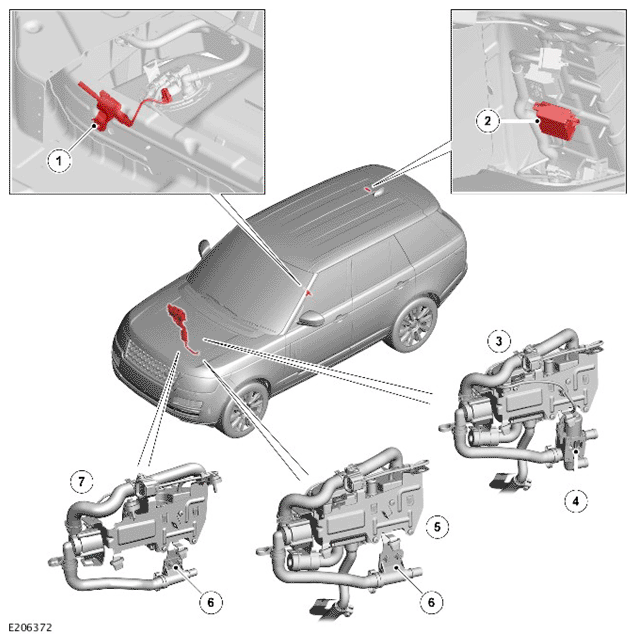

Component Location - 1 Of 1
NOTE:
Diesel Vehicle installation shown; refer to the 'Description' section for petrol vehicle variances.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Fired Booster Heater (FFBH) fuel pump (diesel installation shown, petrol installations similar) |
| 2 | FFBH receiver (vehicles with timed climate control only) |
| 3 | FFBH (vehicles with timed climate control) |
| 4 | FFBH coolant changeover valve (vehicles with timed climate control) |
| 5 | FFBH (vehicles without timed climate control) |
| 6 | Coolant tube connector (vehicles without timed climate control) |
| 7 | FFBH (NAS only) |
