Removal And Installation: Installation

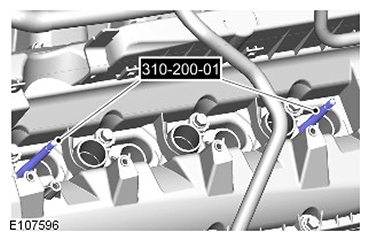

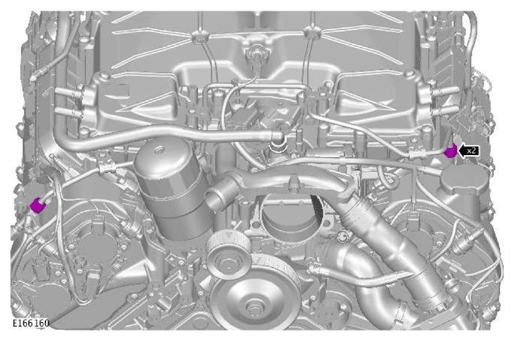

Special Tool(s): 310-198
Special Tool(s): 310-199

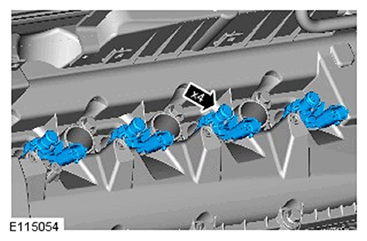

CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

Special Tool(s): 310-200-01 , 310-200-02

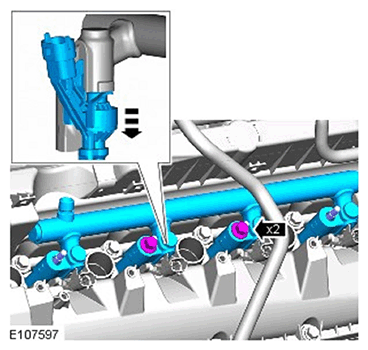

CAUTION: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
CAUTION: If new fuel injectors are installed, a new injector clamp must be installed.

NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Torque Specification: 20 Nm

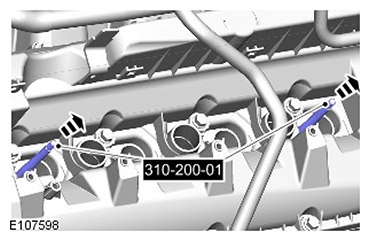

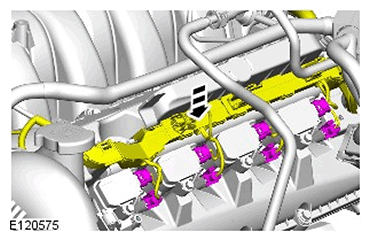

Special Tool(s): 310-200-01 , 310-200-02

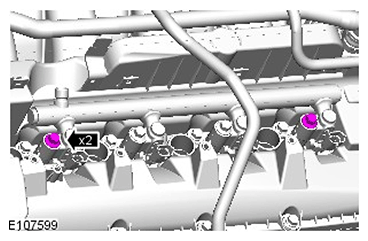

Torque Specification: 20 Nm
CAUTION: Tighten the bolts in the sequence shown.

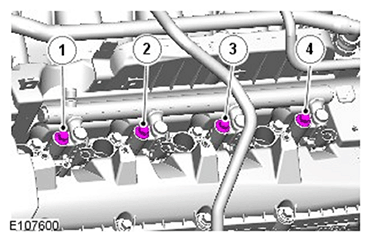

Fig 1: Left Fuel Rail Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

Bolt 2 30 Nm

Bolt 3 30 Nm

Bolt 1 30 Nm

Bolt 4 30 Nm

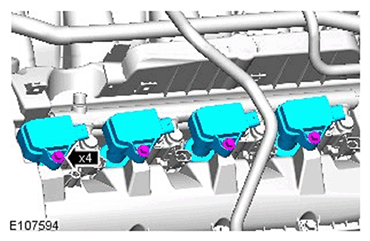

Torque Specification: 8 Nm
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Do not tighten at this stage.
Torque Specification:

Unions 20 Nm

Bolts 8 Nm
Torque Specification: 21 Nm
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
Connect the battery ground cable.
Refer to: SPECIFICATIONS .
