Removal And Installation: Installation

All vehicles

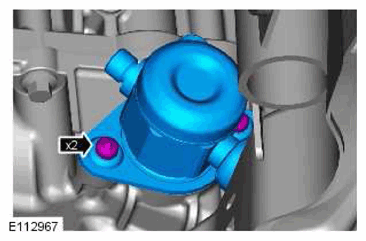

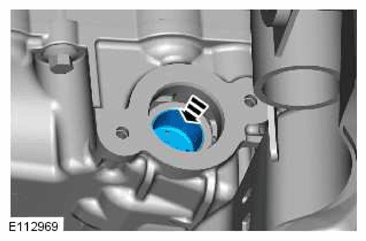

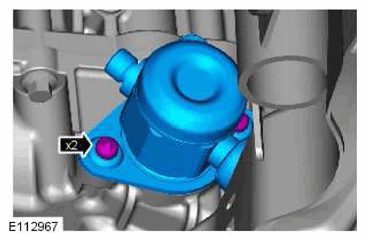

NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

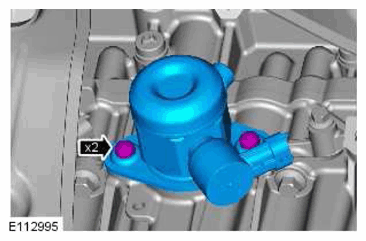

CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

Torque Specification: 11 Nm
Loosen the Torx screws half a turn each.

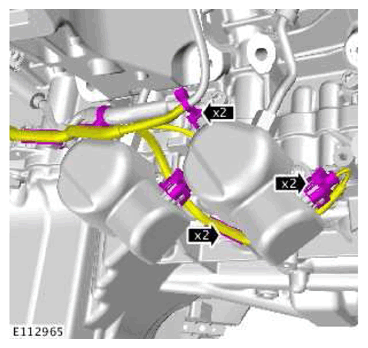

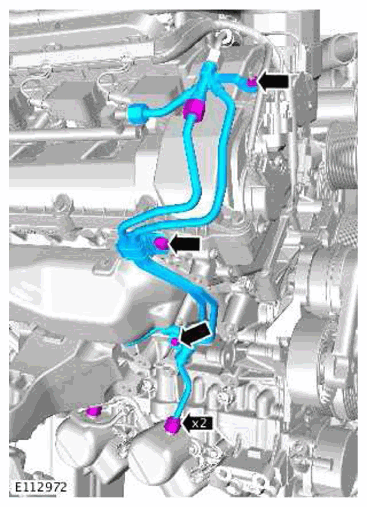

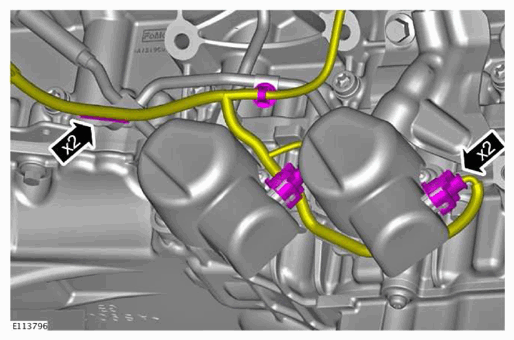

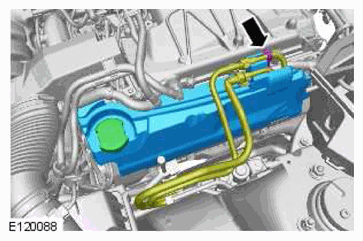

CAUTION: Install new high-pressure fuel supply lines.

NOTE: Remove and discard the blanking caps.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 1 .

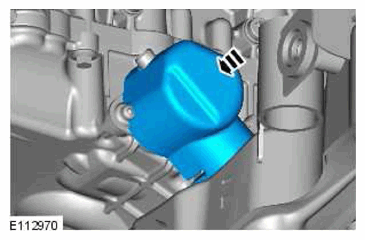

CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

Torque Specification: 11 Nm
Lower the vehicle.
NOTE: Do not tighten at this stage.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise the vehicle.
NOTE: Engine shown removed for clarity.

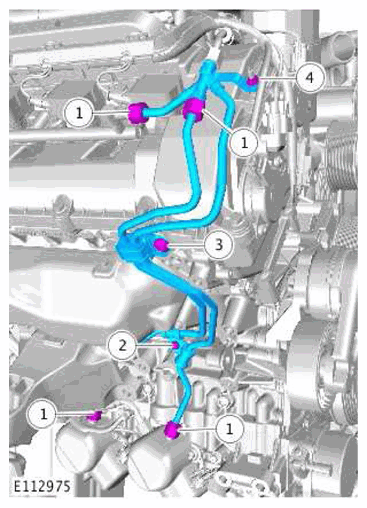

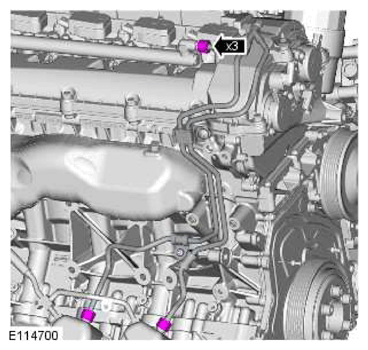

Fig 1: Fuel Rail Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque Specifications:
  Unions (1) 21 Nm

  M6 (2) 11 Nm

  M8 (3) 25 Nm

  M5 nut (4) 6 Nm
NOTE: Engine shown removed for clarity.

Torque Specification: 21 Nm
NOTE: Install the bolt and unions finger tight before final tightening.

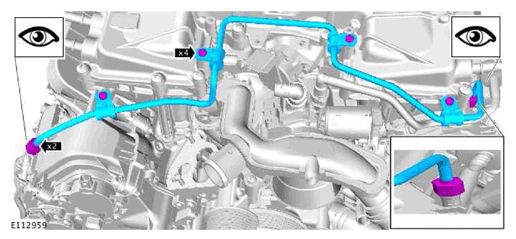

- Torque Specifications:
  Unions 21 Nm

  M6 11 Nm
Torque Specification: 21 Nm
NOTE: Engine shown removed for clarity.
Torque Specification: 25 Nm

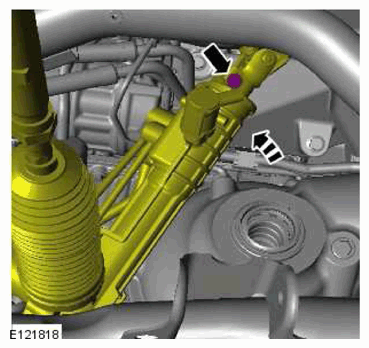

Left-hand drive vehicles

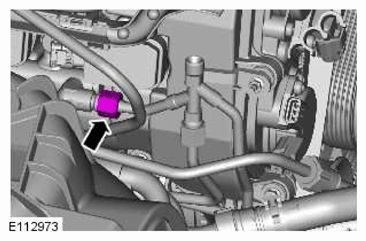

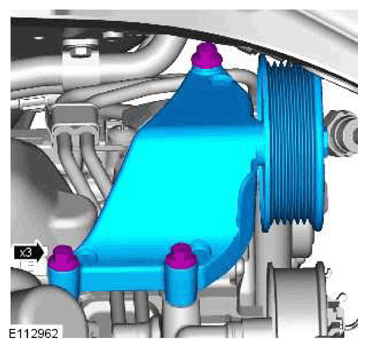

Torque Specification: 24 Nm

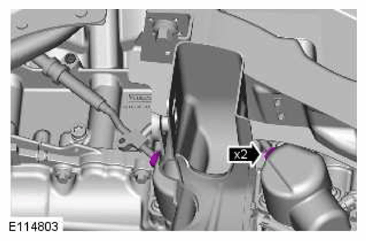

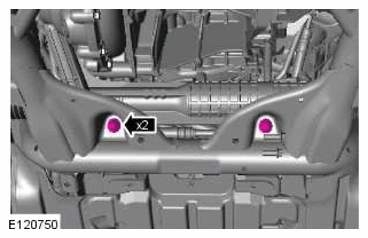

Torque Specification: 100 Nm

All vehicles
Refer to: GENERATOR - V8 S/C 5.0L PETROL .
Lower the vehicle.
NOTE: Do not tighten at this stage.

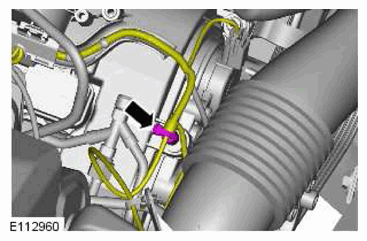

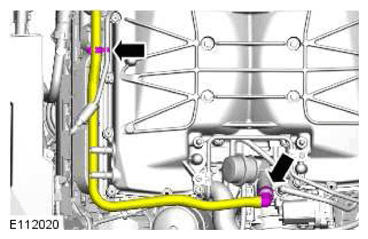

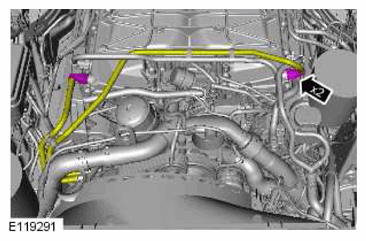

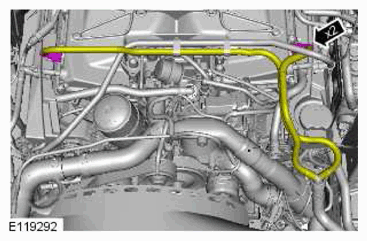

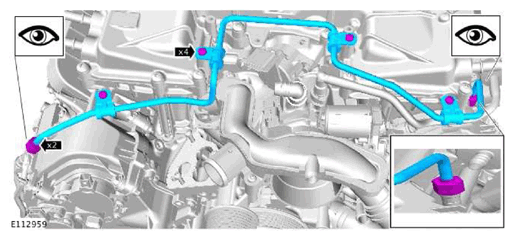

Torque Specifications:

Unions 21 Nm

Bolts 8 Nm

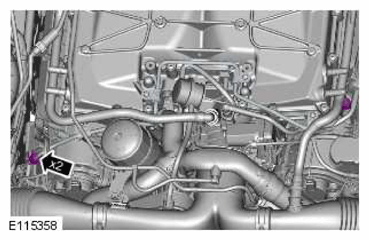

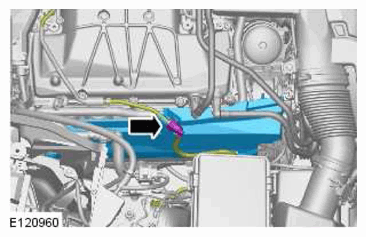

Torque Specification: 21 Nm
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
Refer to: ENGINE UNDERSHIELD .
Connect the battery earth lead.
Refer to: SPECIFICATIONS .
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for leaks.
CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.

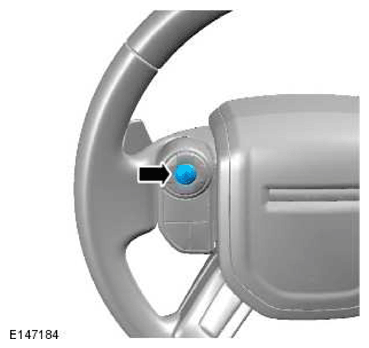

- Set the ignition to the ON position.

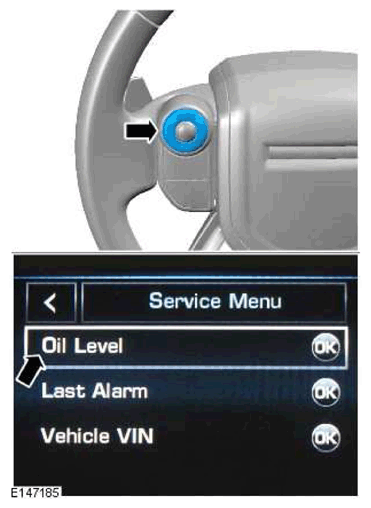

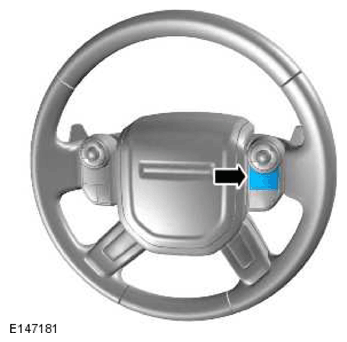

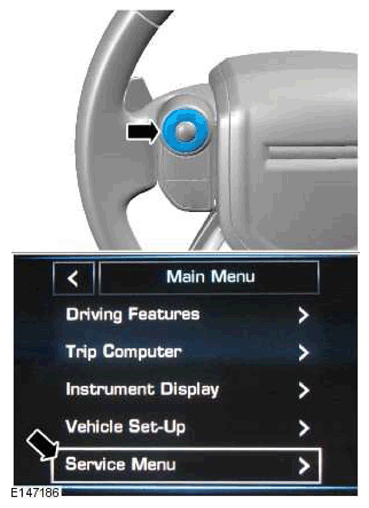

- Press the left hand directional button to access the instrument cluster menu. Select Service Menu.
- Press the left hand OK button.

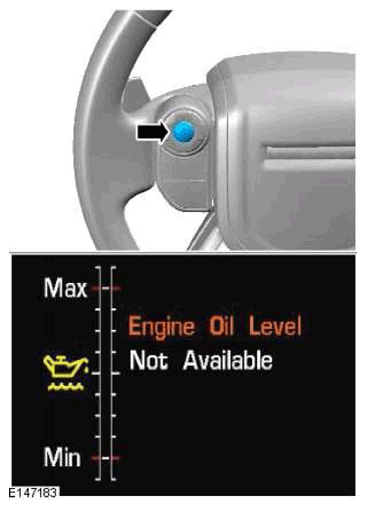

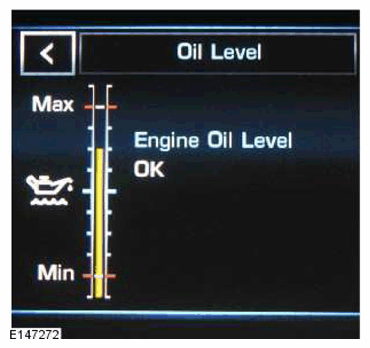

- Press the left-hand directional button to access the Oil Level Display.
- Press the left hand OK button and follow the instructions.
CAUTION: Make sure that the hood is open.

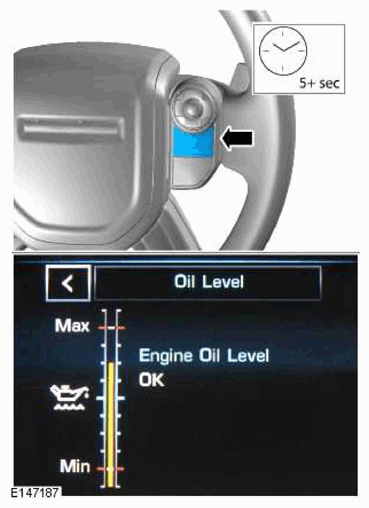

- Press the cruise control cancel button twice within 2 seconds.
- Only after having started and run the engine for 10 minutes (as indicated in Step 32, switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
Set the ignition to the OFF position.
Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
NOTE: The following steps are to update the average oil level value.
Set the ignition to the OFF position.
Set the ignition to the ON position.
- Press the left hand directional button to access the instrument cluster menu. Select Service Menu.
- Press the left hand OK button.
- Press the left-hand directional button to access the Oil Level Display.

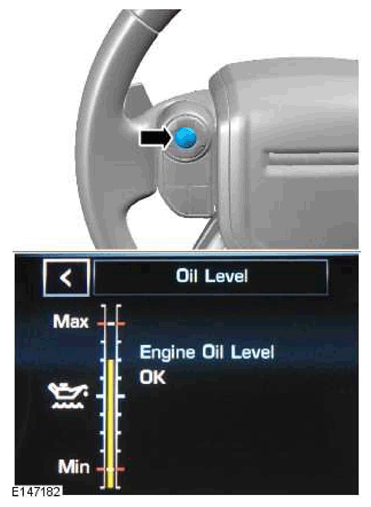

Make sure that the average oil level value has now been updated.
Press the left hand OK button and follow the instructions.
