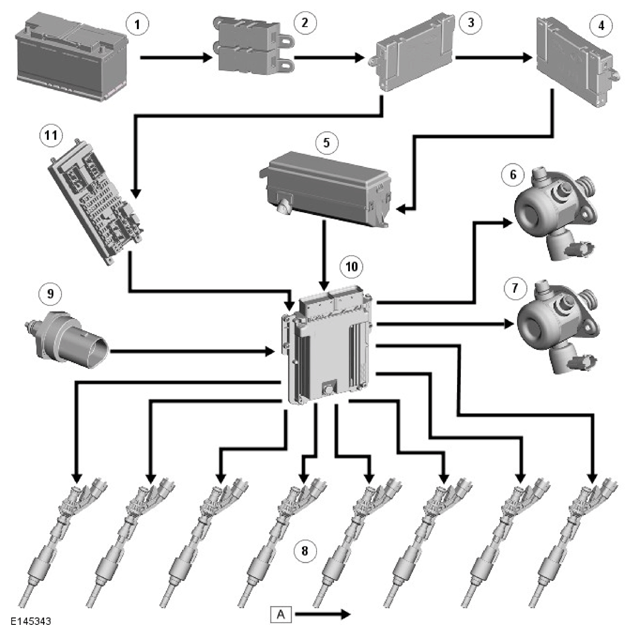

Control Diagram
NOTE:
A
= Hardwired.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Auxiliary Junction Box (AJB) |
| 5 | Engine Junction Box (EJB) |
| 6 | No. 1 HP fuel pump |
| 7 | No. 2 HP fuel pump |
| 8 | Fuel injector (8 off) |
| 9 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 10 | Engine Control Module (ECM) |
| 11 | Central Junction Box (CJB) - Ignition Relay |
