Removal And Installation: Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: Removal steps in this procedure may contain installation details.
  1. G11693941

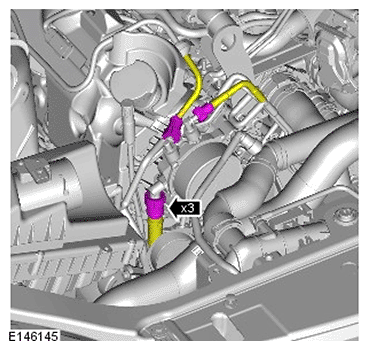

  2. G11693942

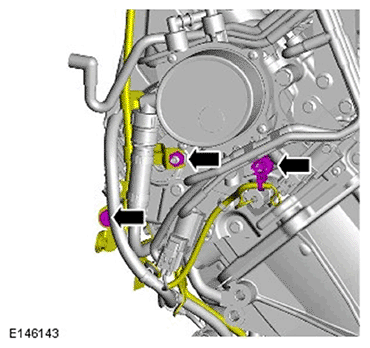

  3. G11693943

    Torque Specification: 23 Nm

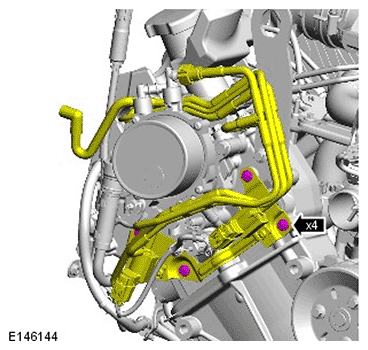

  4. G11693944

    Torque Specification: 10 Nm

  5. NOTE: Remove and discard the gasket.

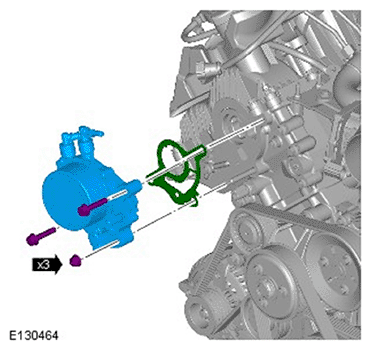

    G11693945

    Renew Part: Brake vacuum pump seal Quantity: 1  .

    Torque Specification: 23 Nm
