Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: SECONDARY BULKHEAD CENTRE PANEL - TDV6 3.0L DIESEL .

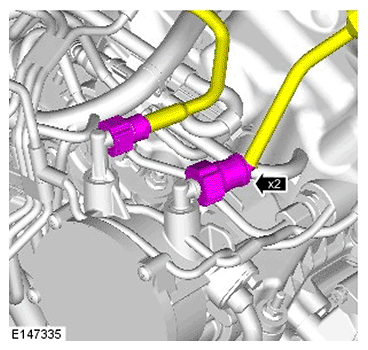

  3. G11693926

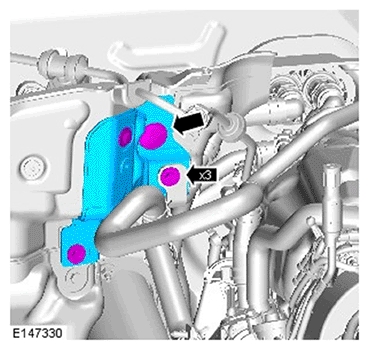

  4. G11693927

    Torque Specification: 6 Nm

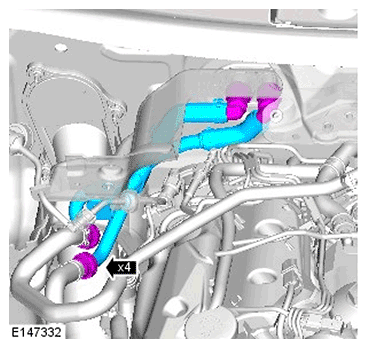

  5. G11693928

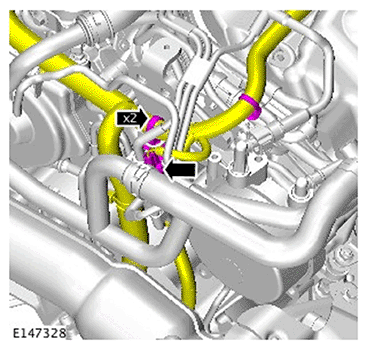

  6. G11693929

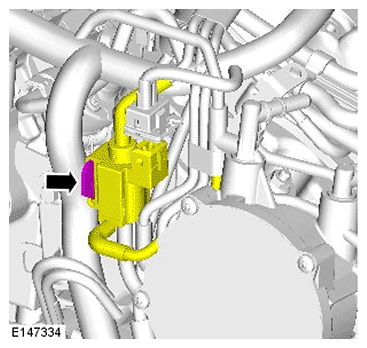

  7. G11693930
    NOTE: Remove and discard the O-ring seal.

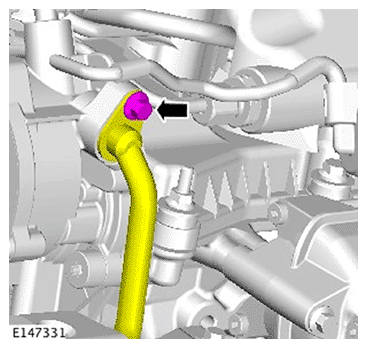

  8. G11693931

    Renew Part: Brake vacuum pump O-ring seal Quantity: 1  .

    Torque Specification: 10 Nm

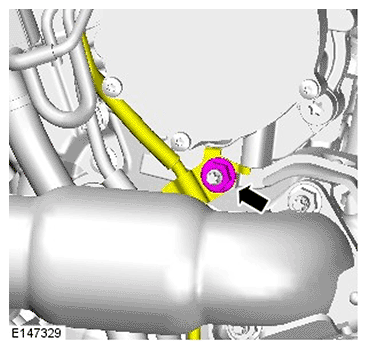

  9. G11693932

    Torque Specification: 23 Nm

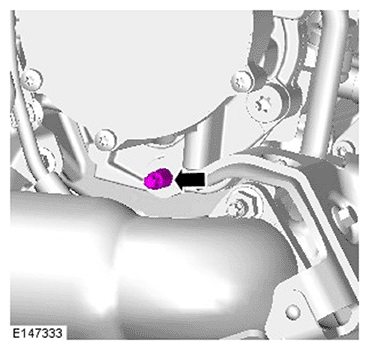

  10. G11693933

    Torque Specification: 13 Nm

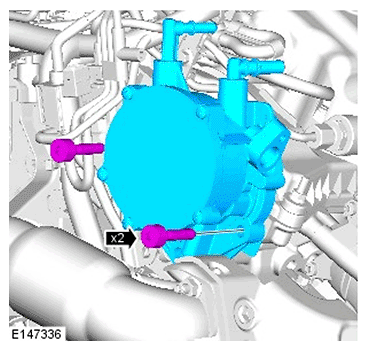

  11. G11693934

    Torque Specification: 23 Nm

  12. G11597346
