TDV8 4.4L Diesel Engine

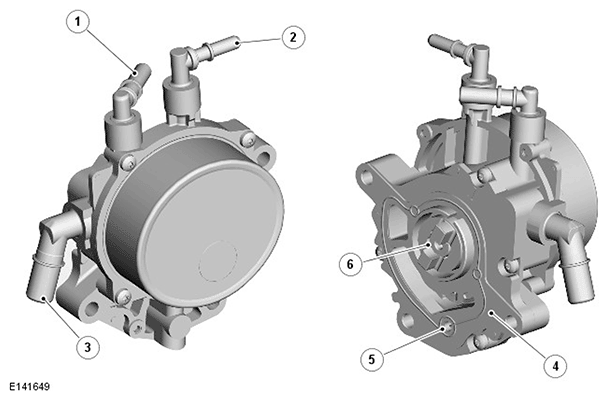

G11693903
ITEM DESCRIPTION
1 Vacuum connection for brake booster
2 Vacuum connection for exhaust gas recirculation/turbocharger control systems
3 Oil scavenge connection
4 Gasket
5 Oil inlet
6 Drive coupling
