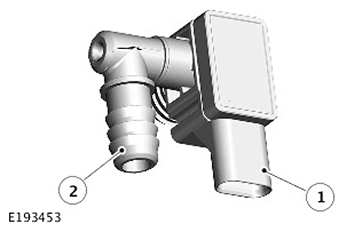

Brake Vacuum Pressure Sensor
| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connection |
| 2 | Vacuum connection |
The vacuum pipes incorporate a brake vacuum pressure sensor with an integral check valve. The brake vacuum pressure sensor monitors vacuum reserves in the brake booster and is hardwired to the Anti-lock Brake System (ABS) control module.
For additional information, refer to: STARTING SYSTEM (TDV6 3.0L DIESEL) / STARTING SYSTEM (V6 S/C 3.0L PETROL) / STARTING SYSTEM (V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL) .
