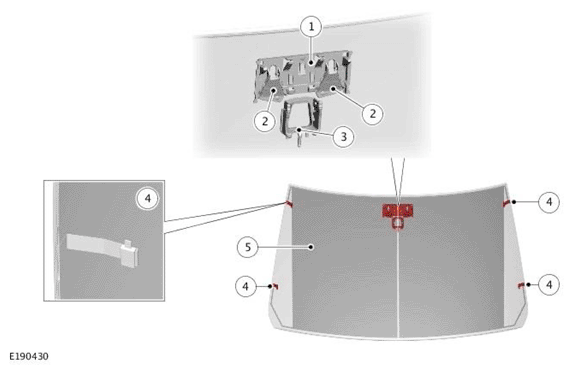

Component Location: Windshield

G11704075
ITEM DESCRIPTION
1 Image Processing Module (IPMA) camera bracket
2 Camera light traps/blanking plates
3 Rear view mirror mounting bracket
4 Windshield heater element connector (If Equipped)
5 Windshield heater element (If Equipped)
