Description And Operation: Notes

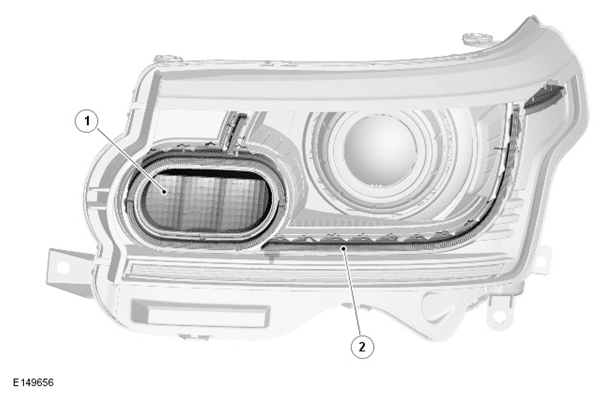

Depending upon the variant of headlamp used, the Daytime Running Lamps (DRL) use different parts of the headlamp, see illustration for usage.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Daylight running lamp and side lamp (low line headlamp) cornering lamp (high line headlamp) |
| 2 | Daylight running and side lamps (high line headlamps) |
The Daytime Running Lamps (DRL) are permanently illuminated when the vehicle is being driven. DRL are used in a number of markets.
