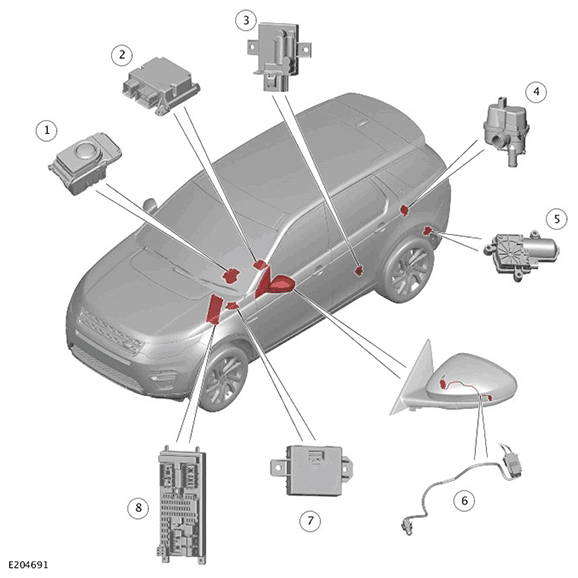

Component Location - 5 Of 5
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Switch (TCS) |
| 2 | Restraints Control Module (RCM) |
| 3 | Fuel Pump Driver Module (FPDM) |
| 4 | Diagnostic Module Tank Leakage (DMTL) pump - North American Specification (NAS) vehicles only |
| 5 | Active exhaust actuator |
| 6 | Ambient Air Temperature (AAT) sensor |
| 7 | Gateway Module (GWM) |
| 8 | Central Junction Box (CJB) |
