Component Location - 4 Of 5
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

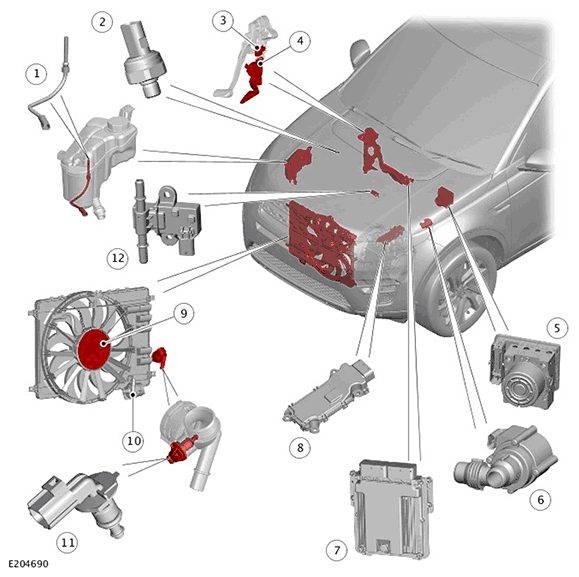

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant level sensor |
| 2 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 3 | Brake pedal switch |
| 4 | Accelerator Pedal Position (APP) sensor |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Auxiliary coolant pump |
| 7 | Powertrain Control Module (PCM) |
| 8 | Transmission Control Module (TCM) |
| 9 | Engine cooling fan control module |
| 10 | Charge air coolant pump |
| 11 | Radiator outlet Engine Coolant Temperature (ECT) sensor |
| 12 | Flex Fuel Sensor (FFS) - Brazil market only |
