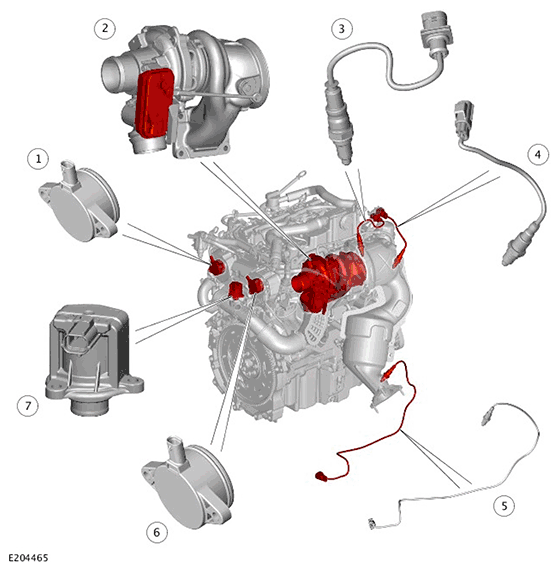

Component Location - 3 Of 5
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Variable Camshaft Timing (VCT) solenoid - Intake |
| 2 | Turbocharger wastegate actuator |
| 3 | Heated Oxygen Sensor (HO2S) - Pre catalyst |
| 4 | HO2S - Mid catalyst |
| 5 | HO2S - Post catalyst - North American Specification (NAS) vehicles only |
| 6 | VCT solenoid - Exhaust |
| 7 | Compressor Recirculation Valve (CRV) |
