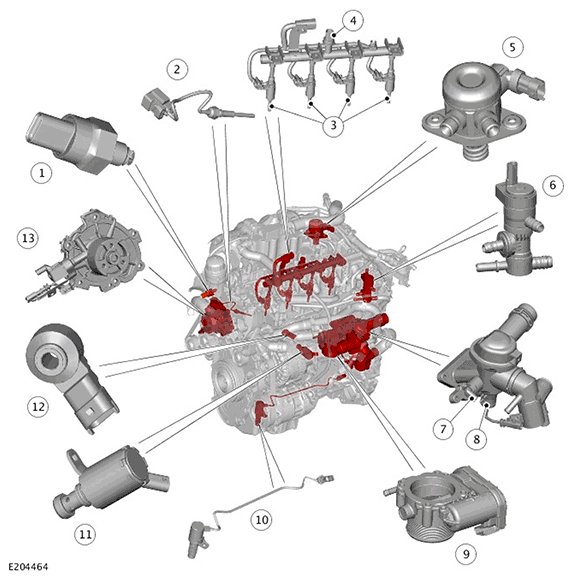

Component Location - 2 Of 5
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil pressure and temperature sensor |
| 2 | Cylinder head temperature sensor |
| 3 | Fuel injector (4 off) |
| 4 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 5 | High Pressure (HP) fuel pump |
| 6 | Purge valve |
| 7 | Engine Coolant Temperature (ECT) sensor - Electric thermostat |
| 8 | Heater element - Electric thermostat |
| 9 | Electric throttle |
| 10 | Oil pump control solenoid |
| 11 | Piston cooling oil jets solenoid |
| 12 | Knock sensor - Front |
| 13 | Variable coolant pump |
