Transmission Control Switch

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
G11718902

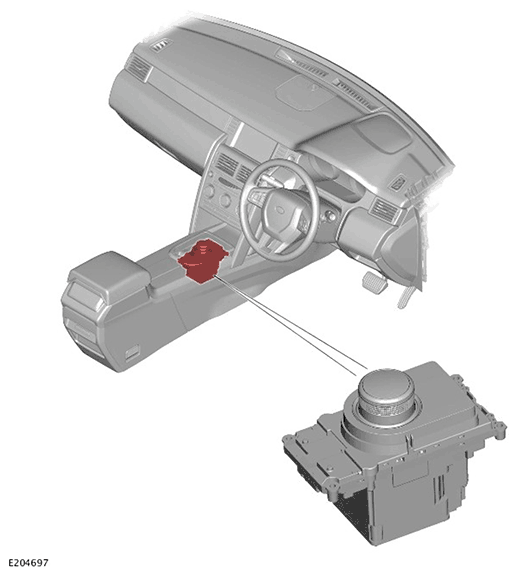

The Transmission Control Switch (TCS) is installed in the top of the floor console. The TCS is secured with four screws and has one electrical connector for all electrical inputs and outputs.

Rotation of the TCS to any of the five positions outputs a signal to the Transmission Control Module (TCM). The TCM senses the signals via the High Speed (HS) Controller Area Network (CAN) powertrain systems bus. The TCM then reacts according to the selected TCS position. The TCS uses Hall effect sensors to determine the position of the switch.
