Fuel Pressure Sensor - Low Pressure Fuel System

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

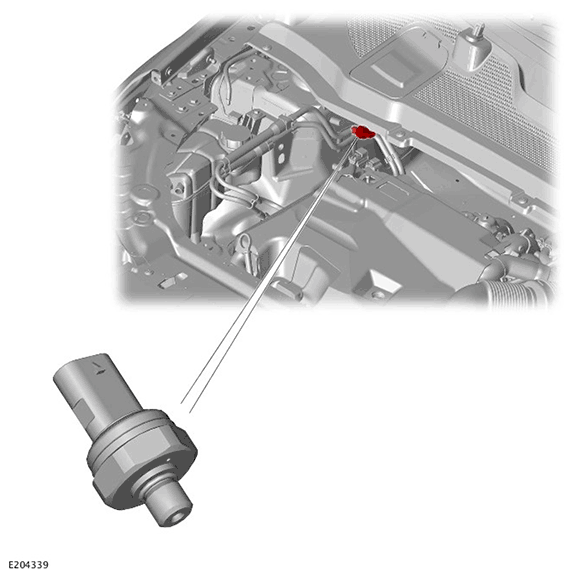

G11718884

The Low Pressure (LP) fuel sensor is located in the right corner of the engine compartment, beside the inner side of the right top mount. The sensor is located in a connector between the fuel pump module and the LP delivery line to the High Pressure (HP) fuel pump. The fuel sensor is screwed into an integral boss on the fuel delivery line. The sensor measures the fuel pressure being supplied from LP fuel pump to the HP fuel pump.
