Cylinder Head Temperature Sensor

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
G11718869

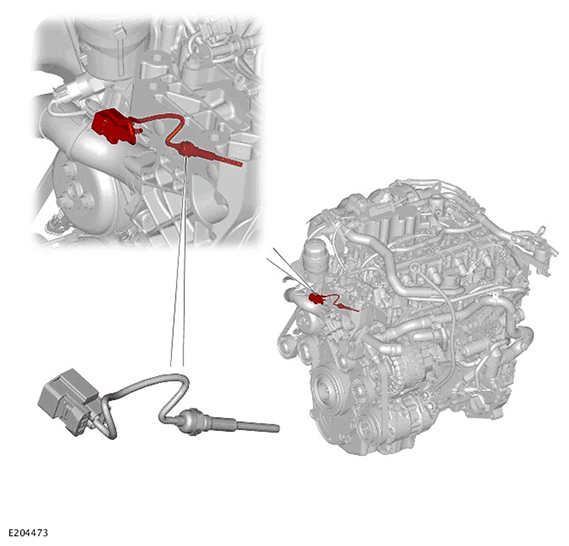

The cylinder head temperature sensor is located in a threaded hole in the right side of the cylinder head. The threaded hole is located adjacent to the oil filter housing and the cylinder head engine coolant outlet pipe.

The sensor is a Negative Temperature Coefficient (NTC) type sensor with a two pin connection. One pin receives a 5 V reference voltage from the Powertrain Control Module (PCM) and the second pin provides a signal feedback to the PCM.
