Central Junction Box

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
G11718905

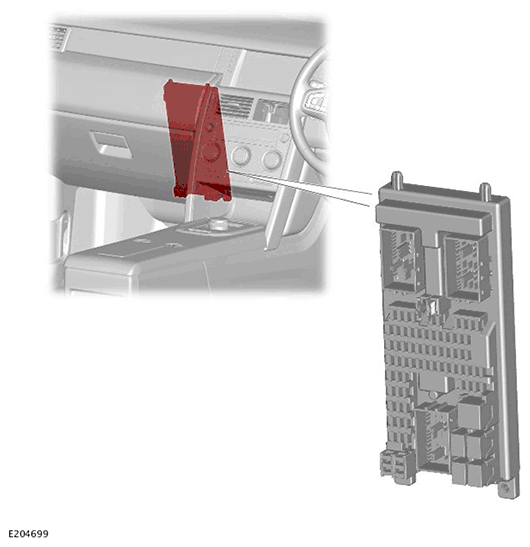

The Central Junction Box (CJB) is mounted on a bracket, which is attached to the lower 'A' pillar on the passenger side of the vehicle.

CJB is designed to make the vehicle operations simpler by controlling all electrical operations in one module. The CJB performs body control functions, such as lighting, security, locking, immobilization. Performs network gateway function between Control Area Network (CAN) busses.
