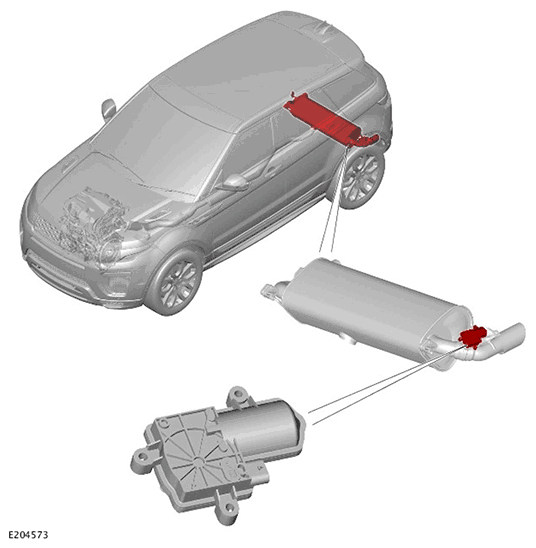

Active Exhaust Actuator - Vehicles Without Third Row Seats

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
G11718908

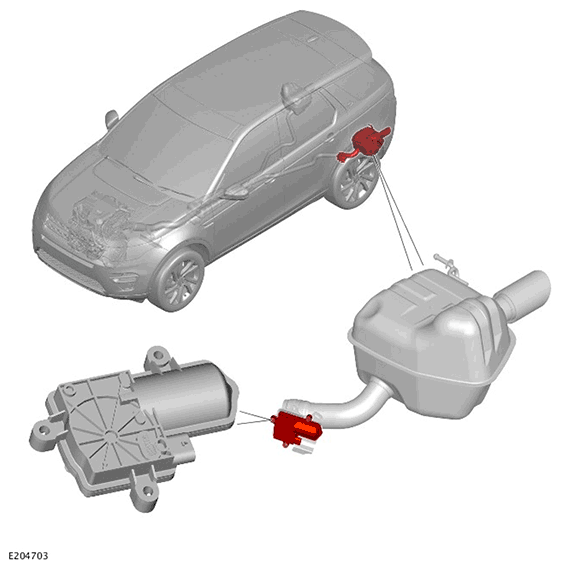

Active Exhaust Actuator - Vehicles with third row seats

G11718909

The active exhaust actuator is located on the left side of the rear silencer.

The active exhaust system allows exhaust gases to pass through the rear silencer left outlet pipe to produce louder exhaust sound and enhances the engine performance.

The active exhaust actuator receives a 12 V power supply from the Battery Junction Box (BJB). The operation of the active exhaust actuator is controlled by the Powertrain Control Module (PCM)
