Control Diagram - 1 Of 2
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

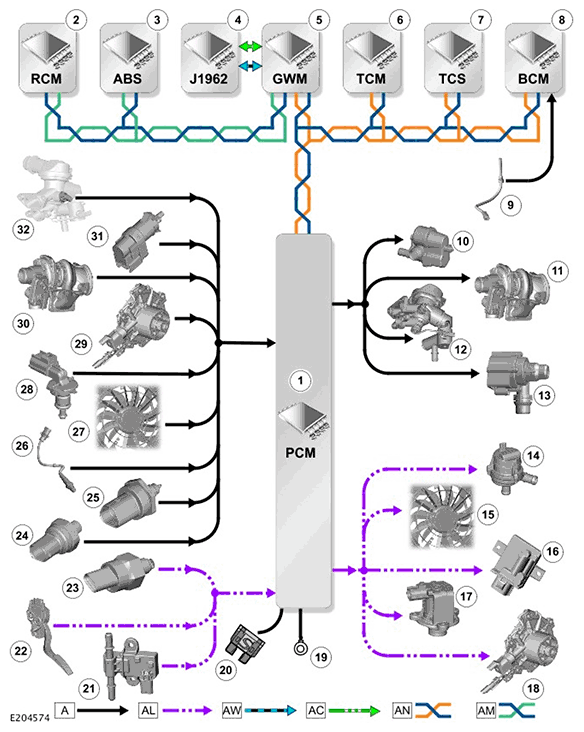

A = HARDWIRED: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AL = PULSE WIDTH MODULATION (PWM): AW = ETHERNET: AC = DIAGNOSTIC.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Restraints Control Module (RCM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Diagnostic connector (J1962) |
| 5 | Gateway Module (GWM) |
| 6 | Transmission Control Module (TCM) |
| 7 | Transmission Control Switch (TCS) |
| 8 | Central Junction Box (CJB) |
| 9 | Engine coolant level sensor |
| 10 | Diagnostic Module Tank Leakage (DMTL) pump - North American Specification (NAS) vehicles only |
| 11 | Auxiliary coolant pump |
| 12 | Heater element - Electric thermostat |
| 13 | Turbocharger wastegate actuator |
| 14 | Charge air coolant pump |
| 15 | Engine cooling fan control module |
| 16 | Fuel Pump Driver Module (FPDM) |
| 17 | Compressor Recirculation Valve (CRV) |
| 18 | Variable coolant pump |
| 19 | Ground |
| 20 | Power supply |
| 21 | Flex Fuel Sensor (FFS) - Brazil market only |
| 22 | Accelerator Pedal Position (APP) sensor |
| 23 | Oil pressure and temperature sensor |
| 24 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 25 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 26 | Heated Oxygen Sensor (HO2S) (3 off) |
| 27 | Engine cooling fan speed signal |
| 28 | Radiator outlet Engine Coolant Temperature (ECT) sensor |
| 29 | Variable coolant pump shroud position sensor |
| 30 | Turbocharger wastegate actuator position sensor |
| 31 | Brake pedal switch |
