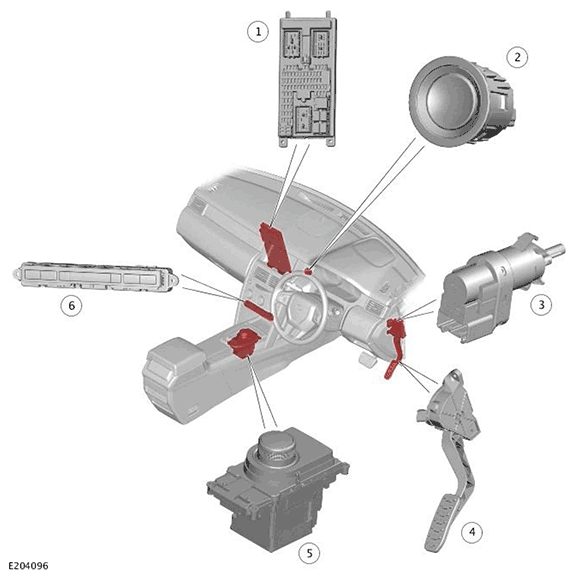

Component Location - 2 Of 2
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM |
DESCRIPTION |
| 1 |
Central Junction Box (CJB) |
| 2 |
Ignition switch |
| 3 |
Brake pedal switch |
| 4 |
Accelerator pedal |
| 5 |
Transmission Control Switch (TCS) |
| 6 |
Auto stop/start switch - Terrain Response (TR) switchpack |
