Component Location - 1 Of 2

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

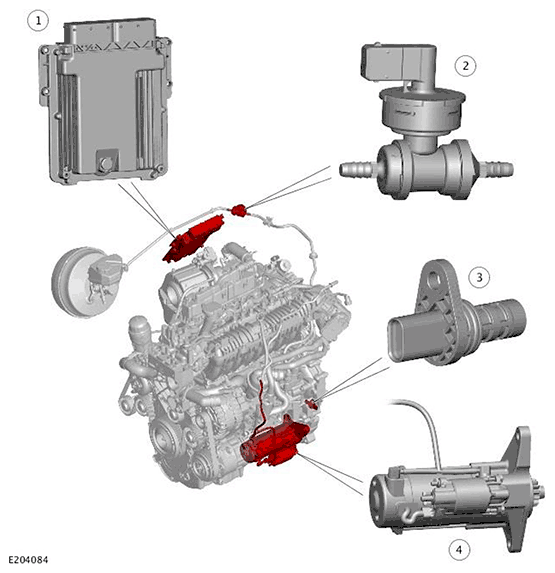

G11718527
ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 Brake vacuum sensor
3 Crankshaft Position Sensor (CKP)
4 Starter motor
