Automatic Transmission Fluid Warming Valve
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

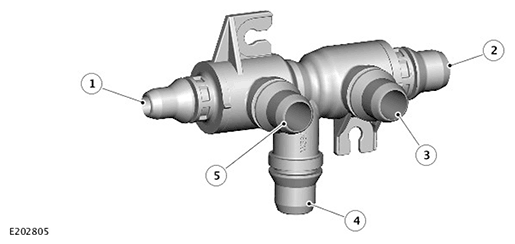

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Thermostatic valve - Automatic Transmission Fluid (ATF) cooler (Hot engine coolant inlet) |
| 2 | Hose connection - Engine coolant return to variable coolant pump inlet |
| 3 | Hose connection - ATF cooler outlet |
| 4 | Hose connection - Radiator low temperature cooling circuit (Cold engine coolant inlet) |
| 5 | Hose connection - ATF cooler inlet |
The Automatic Transmission Fluid (ATF) warming valve is a thermostatic ATF mixing valve. It is designed to reduce ATF warm up time and provides a precise temperature control for the ATF temperature. The ATF warming valve mixes the hot engine coolant from the thermostatic valve and cold engine coolant from the low temperature zone at the left side of the radiator. This provides the desired temperature control of the ATF temperature.
