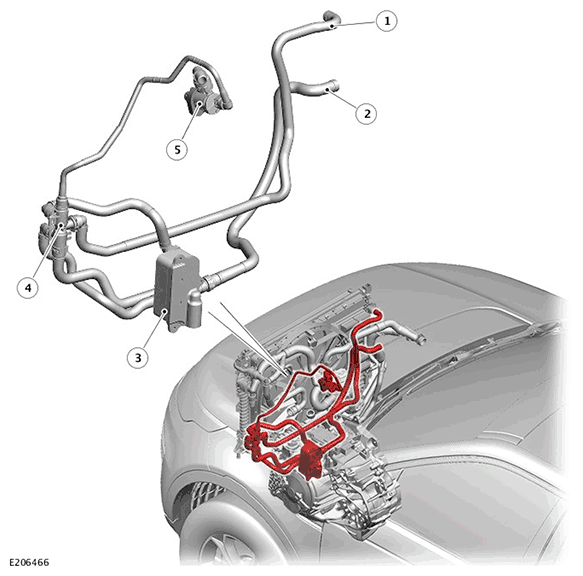

Component Location
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Radiator low temperature cooling circuit hose |
| 2 |
Automatic Transmission Fluid (ATF) warming valve return hose to coolant pump |
| 3 |
ATF cooler |
| 4 |
ATF warming valve |
| 5 |
Thermostatic valve - ATF cooler |
