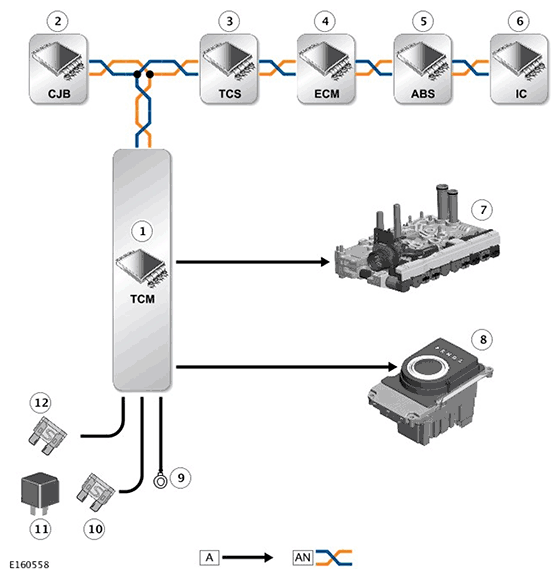

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; AN = High speed CAN Powertrain systems
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Module (TCM) |
| 2 | Central Junction Box (CJB) |
| 3 | Transmission Control Switch (TCS) |
| 4 | Engine Control module (ECM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Instrument cluster |
| 7 | Valve block |
| 8 | Transmission Control Switch (TCS) |
| 9 | Ground |
| 10 | Fuse - ignition supply from ignition relay |
| 11 | Ignition relay (CJB) |
| 12 | Fuse - Permanent battery supply |
