Service Park Release (SPR)
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
The SPR is a mechanical procedure which requires removal of the air filter housing for access. The procedure is required when there has been a loss of vehicle electrical power or a failure to the automatic transmission preventing release of the park lock.
The following procedure must be used to release the park lock before moving the vehicle. The vehicle must be held by either the electric park brake or wheel chocks to prevent it unintentionally moving when the park lock is released.

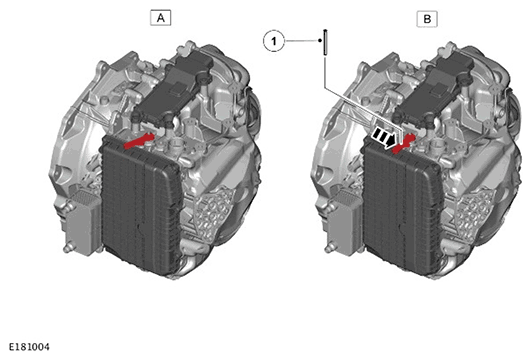

| ITEM | DESCRIPTION |
|---|---|
| A | SPR engaged |
| B | SPR released |
| 1 | 5mm locking pin |
