Instrument Cluster
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

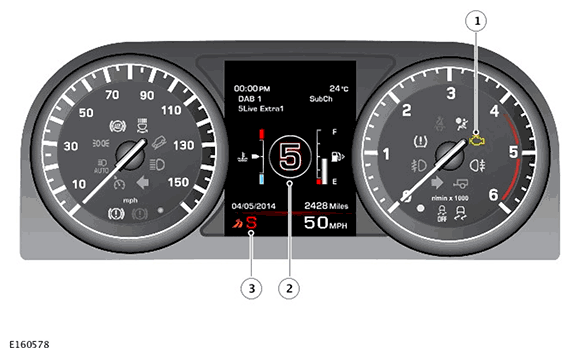

The following illustration shows the display when the transmission is in CommandShift™ mode. PRNDS is displayed during normal transmission operation.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Malfunction Indicator Lamp (MIL) |
| 2 | Gear indicator (Dynamic mode) |
| 3 | Transmission indicator |
The instrument cluster is connected to the TCM via the high speed CAN powertrain systems bus. Transmission status is transmitted by the TCM and displayed to the driver in the instrument cluster.
For additional information, refer to: INSTRUMENT CLUSTER
