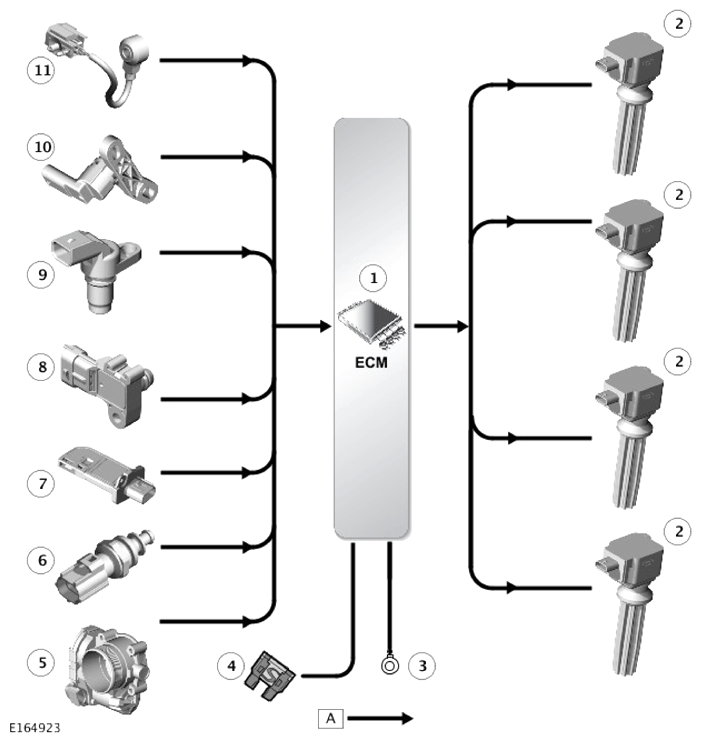

Control Diagram
A = HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | Ignition coil |
| 3 | Ground |
| 4 | Power supply |
| 5 | Throttle Position Sensor (TPS) |
| 6 | Engine Coolant Temperature (ECT) sensor |
| 7 | Mass Air Flow (MAF) sensor |
| 8 | Manifold Absolute Pressure (MAP) sensor |
| 9 | Camshaft Position (CMP) sensor |
| 10 | Crankshaft Position (CKP) sensor |
| 11 | Knock sensor (2 of) |
