Fuel Filler Pipe And Breather Assembly

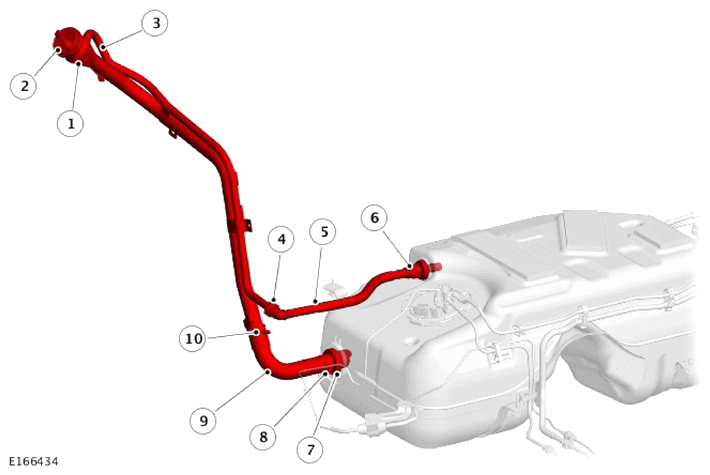

Fuel Filler Pipe - Rest of World (ROW)

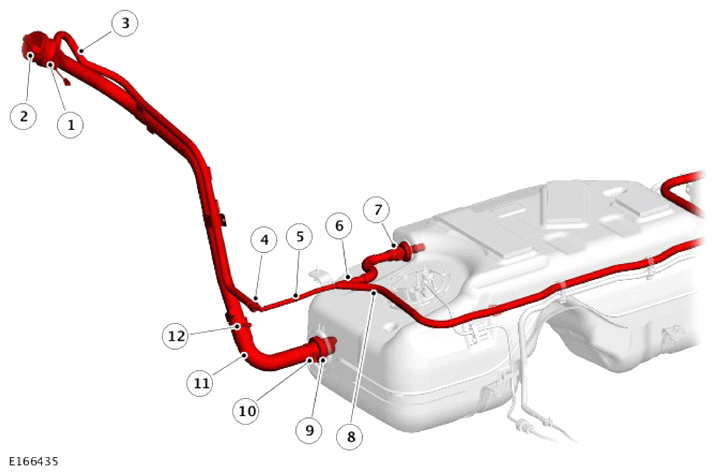

Fuel Filler Pipe - North American Specification (NAS)

The neck of the fuel filler pipe is positioned at the rear of the vehicle, above the right rear wheel. The filler pipe and cap is covered by a molded plastic fuel flap which is electrically locked when the vehicle is locked.

The filler cap is a conventional screw-in type which is secured to the vehicle with a lanyard. The filler cap must be securely fitted to ensure that the tank venting system is sealed. The cap has a locking mechanism which gives an audible click when the cap is correctly tightened.

Failure to correctly secure the cap will result in vapor being lost from the system to atmosphere. On North American Specification (NAS) vehicles, if the cap is incorrectly secured when the engine management system operates the Diagnostic Monitoring Tank Leakage (DMTL) system, the loss of vapor will be detected as a leak and the Malfunction Indicator Lamp (MIL) will be illuminated.

The filler pipe is a stainless steel fabrication which is secured to the vehicle body with two brackets and nuts. A metal stub pipe, attached to the filler neck, provides for the attachment of the breather pipe.

The fuel filler pipe attaches to a stub at the rear of the fuel tank which incorporates a check valve. The in-line check valve is mounted inside the fuel tank inlet stub, and is retained in the closed position by a spring. The check valve is only opened when the vehicle is refueled.

A breather pipe is connected between the fuel filler neck and the fuel tank. The breather pipe enables the fuel tank to be filled, allows for expansion of the fuel vapor and controls the fuel cut off during filling. The fuel vapor is routed to an evaporative emissions canister. For additional information, refer to: EVAPORATIVE EMISSIONS .
