Fuel Tank and Lines: Description

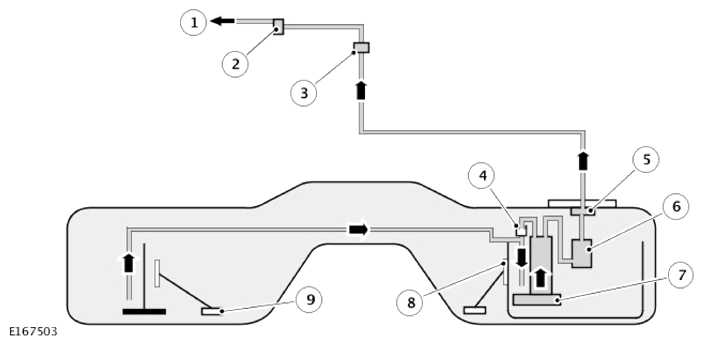

Fuel System Schematic Diagram
| ITEM |
DESCRIPTION |
| 1 |
Fuel supply to fuel rail |
| 2 |
High Pressure (HP) fuel pump (engine mounted) |
| 3 |
Low Pressure (LP) fuel sensor |
| 4 |
Jet pump |
| 5 |
Pressure Relief Valve (PRV) |
| 6 |
Fuel filter |
| 7 |
Fuel pump module |
| 8 |
Fuel level sensor 'A' |
| 9 |
Fuel level sensor 'B' |
