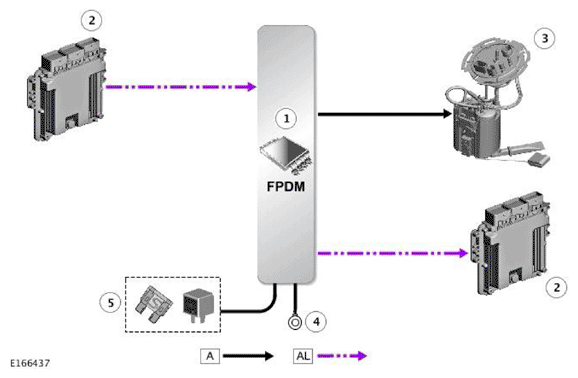

Control Diagram

NOTE: A = Hardwired; AL = PWM
G11708741
ITEM DESCRIPTION
1 Fuel Pump Driver Module (FPDM)
2 Engine Control Module (ECM)
3 Fuel pump module
4 Ground
5 Power supply and fuel pump relay - Battery Junction Box (BJB)
