Auto Stop/Start Switch

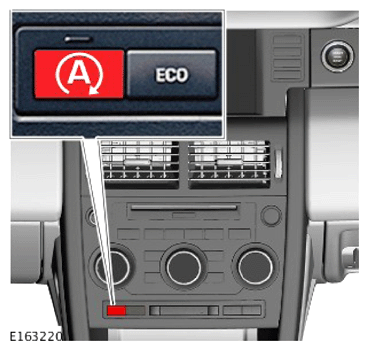

G13631943

The Auto stop/start switch is located in a switchpack, together with the Hill Descent Control (HDC) and Dynamic Stability Control (DSC) switches, in the floor console. An amber Light Emitting Diode (LED) in the Auto stop/start switch remains illuminated while the Auto stop/start system is active.

The Auto stop/start switch is hardwired to the Central Junction Box (CJB), which it supplies with a ground signal when the switch is pressed.
