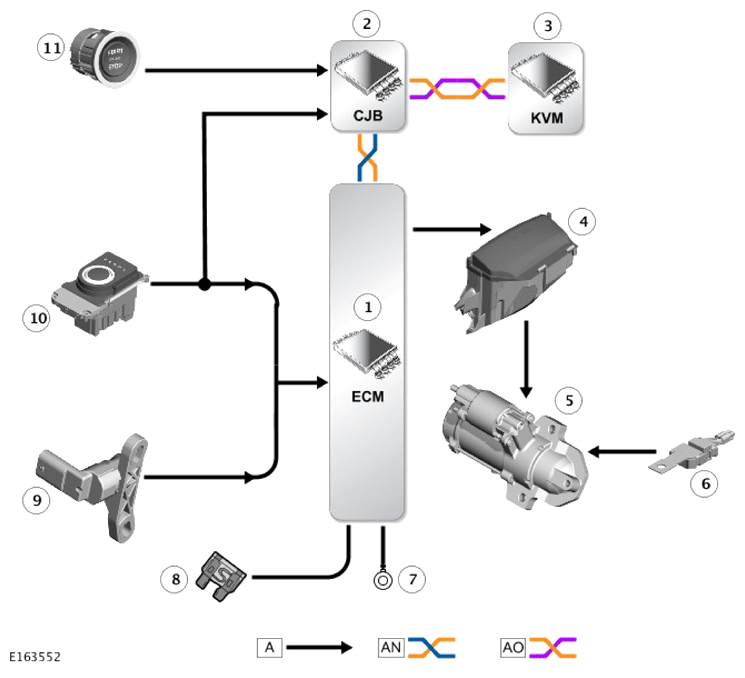

Starting System - Without Auto Stop/Start
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS; AO = MEDIUM SPEED (MS) CAN BODY BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | Central Junction Box (CJB) |
| 3 | Keyless Vehicle Module (KVM) |
| 4 | Battery Junction Box (BJB) |
| 5 | Starter Motor |
| 6 | Starter fuse |
| 7 | Ground |
| 8 | Power supply |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Brake pedal switch |
| 11 | Transmission Control Switch (TCS) |
| 12 | Stop/start switch |
