Starting System - With Auto Stop/Start

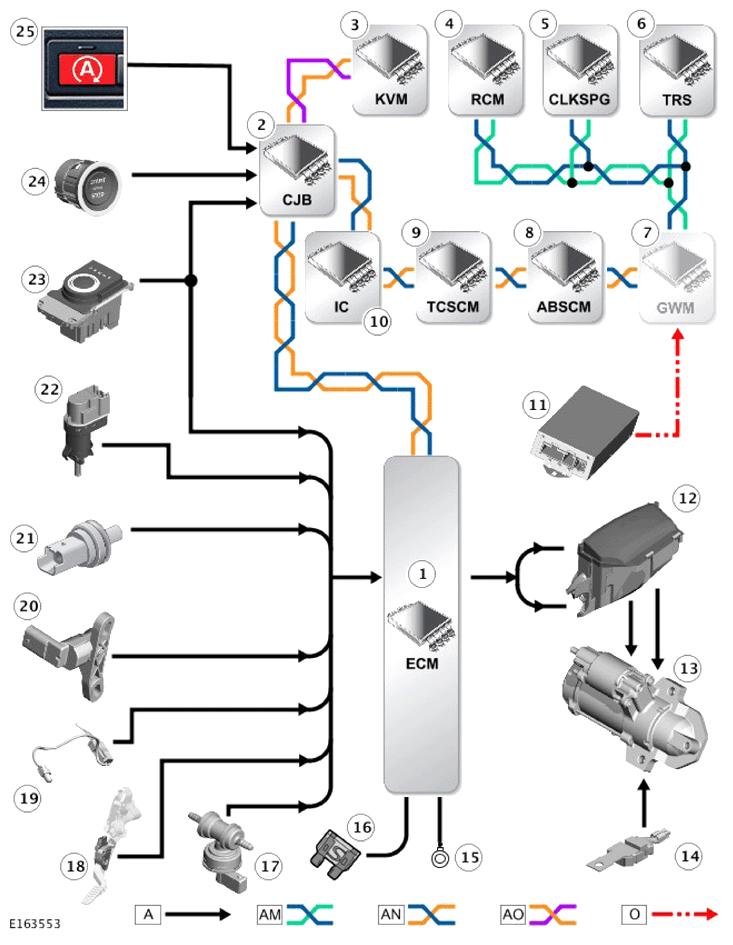

A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS BUS; AN = HS CAN POWERTRAIN BUS; AO = MEDIUM SPEED (MS) CAN BODY BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | Central Junction Box (CJB) |
| 3 | Keyless Vehicle Module (KVM) |
| 4 | Restraints Control Module (RCM) |
| 5 | Clockspring (CLKSPG) |
| 6 | Terrain Response Auto2® switchpack |
| 7 | Gateway Module (GWM) |
| 8 | Anti-lock Brake System (ABS) control module |
| 9 | Transmission control switch control module |
| 10 | Instrument Cluster (IC) |
| 11 | Voltage Quality Module (VQM) |
| 12 | Battery Junction Box (BJB) |
| 13 | Starter motor |
| 14 | Starter fuse |
| 15 | Ground |
| 16 | Power supply |
| 17 | Brake vacuum switch |
| 18 | Accelerator Pedal Position (APP) sensor |
| 19 | Ambient Air Temperature (AAT) sensor |
| 20 | Crankshaft Position (CKP) sensor |
| 21 | Engine Coolant Temperature (ECT) sensor |
| 22 | Brake pedal switch |
| 23 | Transmission Control Switch (TCS) |
| 24 | Stop/start switch |
| 25 | Auto stop/start switch |
