Vehicles with Auto Stop/Start

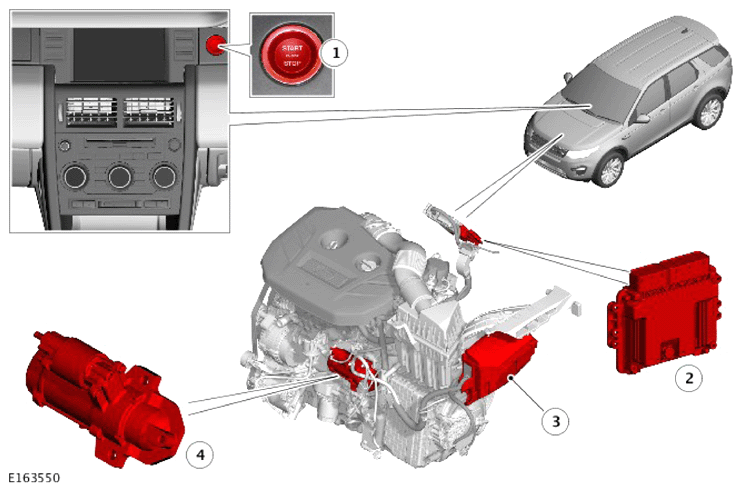

G13631938
ITEM DESCRIPTION
1 Stop/start switch
2 Engine Control Module (ECM)
3 Battery Junction Box (BJB)
4 Starter motor

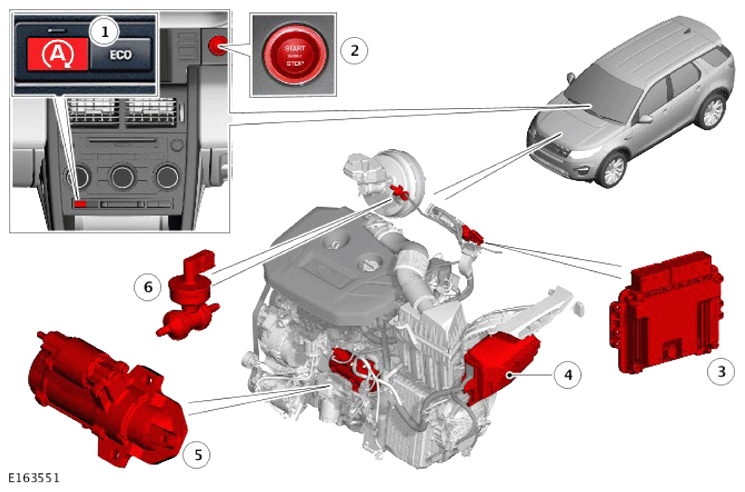

G13631939
ITEM DESCRIPTION
1 Auto stop/start switch
2 Stop/start switch
3 Engine Control Module (ECM)
4 Battery Junction Box (BJB)
5 Starter motor
6 Brake vacuum switch
