Engine - GTDI 2.0L Petrol/GTDI 2.0L Petrol - SULEV (G1347534): Removal: Engine: Part(S)

STEP PART NAME QUANTITY
Step  5 Stabilizer bar link lower nut 1
Step  6 Front halfshaft nut 1
Step  10 Stabilizer bar link lower nut 1
Step  11 Front halfshaft nut 1
Step  37 Secondary catalytic converter gasket 1
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: BATTERY TRAY
  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1809493)
  4. Refer to: FRONT SUBFRAME
  5. CAUTION: Discard the nut.

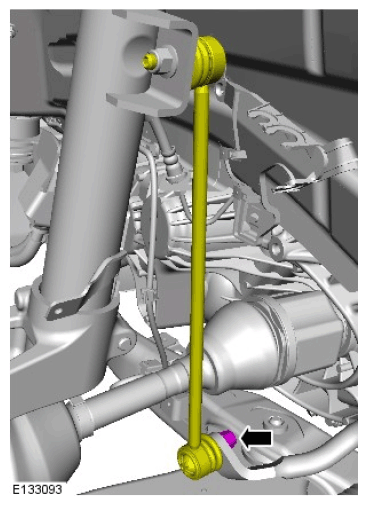

    G11596620

    Renew Part: Stabilizer bar link lower nut Quantity: 1  .

  6. CAUTION: Discard the nut.

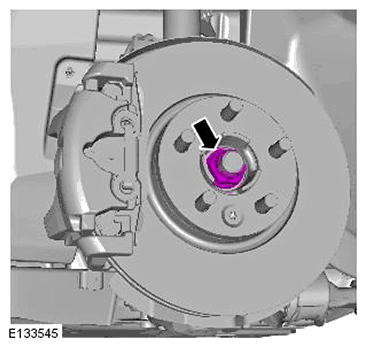

    G11716383

    Renew Part: Front halfshaft nut Quantity: 1  .

  7. CAUTION:
    • Make sure that the driveshaft is supported with suitable retaining straps.
    • Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

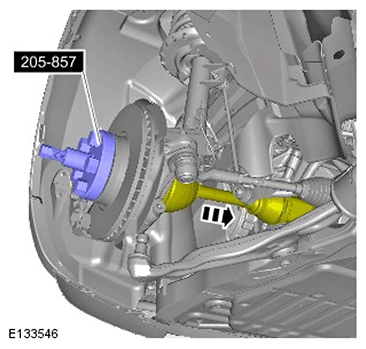

    G11588959

    Special Tool(s): 205-857

  8. WARNING: Be prepared to collect escaping fluids.
    CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

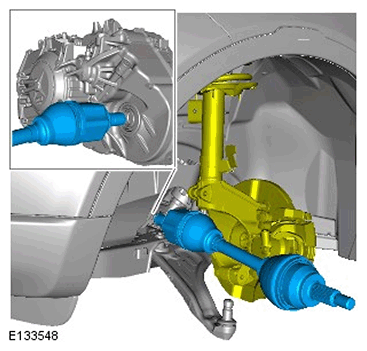

    G11588960

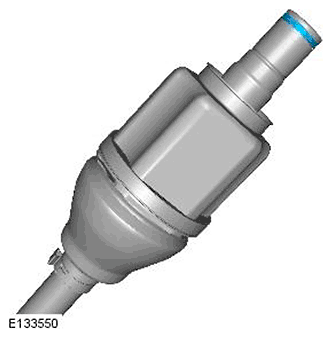

  9. G11719356
  10. CAUTION: Discard the nut.

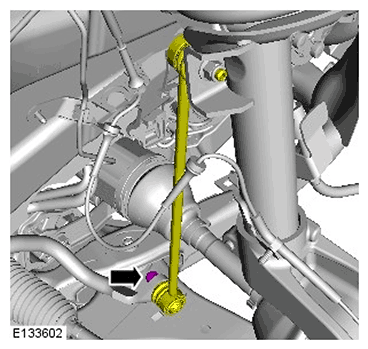

    G11715775

    Renew Part: Stabilizer bar link lower nut Quantity: 1  .

  11. WARNING: Make sure that a new nut is installed.
    CAUTION: Discard the nut.

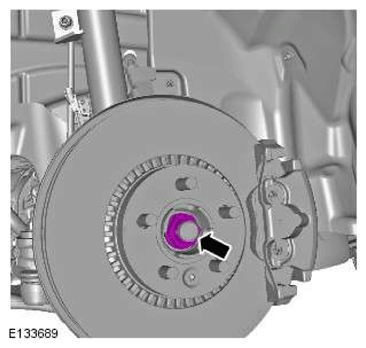

    G11591622

    Renew Part: Front halfshaft nut Quantity: 1  .

  12. CAUTION:
    • Make sure that the driveshaft is supported with suitable retaining straps.
    • Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

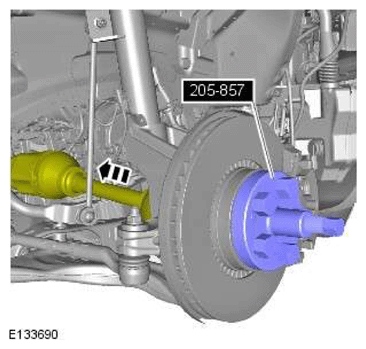

    G11591623

    Special Tool(s): 205-857

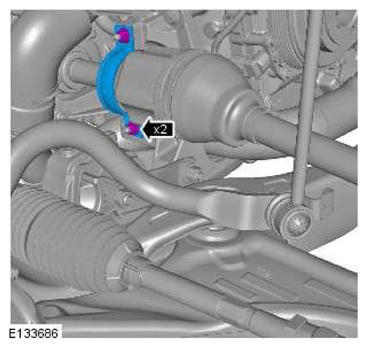

  13. G11591624
  14. WARNING: Be prepared to collect escaping fluids.
    CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

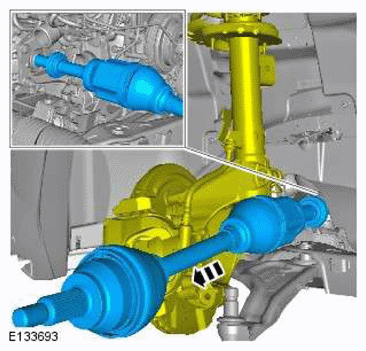

    G11591625
  15. Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
  16. Refer to: AIR CLEANER (G1780571)

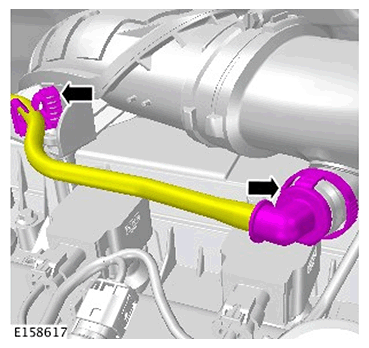

  17. G11588520
  18. G11588362

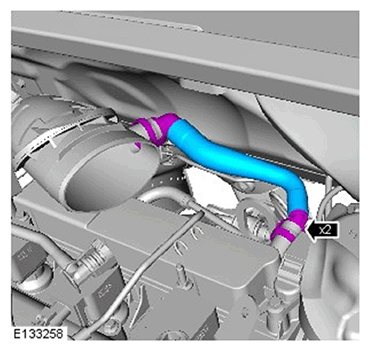

  19. G11587523
  20. Refer to: PLENUM CHAMBER
  21. G11587557
  22. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

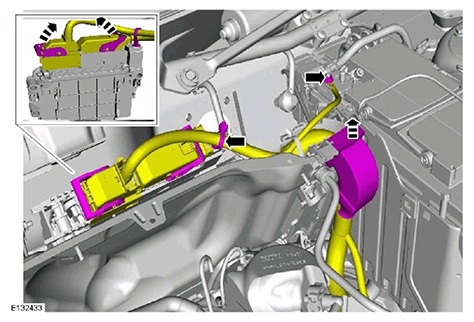

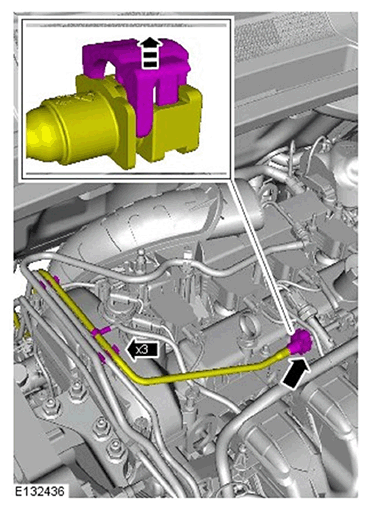

    G11587559
  23. CAUTION: Be prepared to collect escaping fluids.

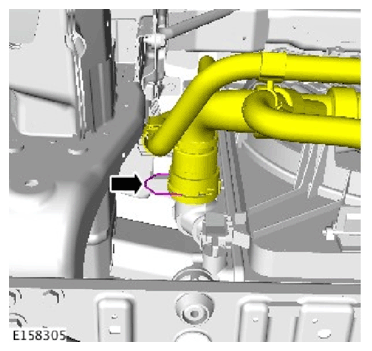

    G13002401

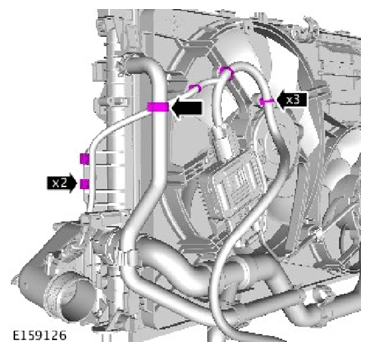

  24. G13003211

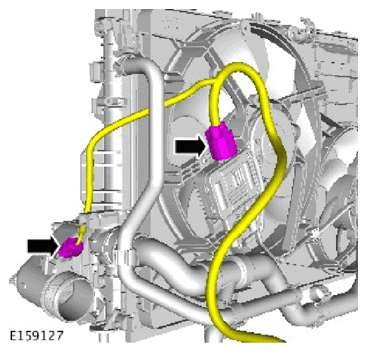

  25. G13003212

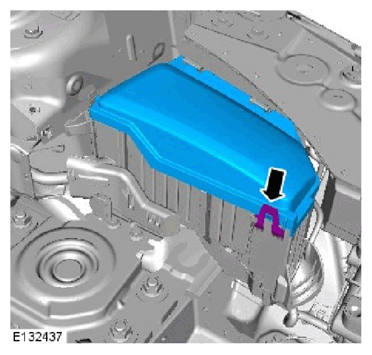

  26. G13002286

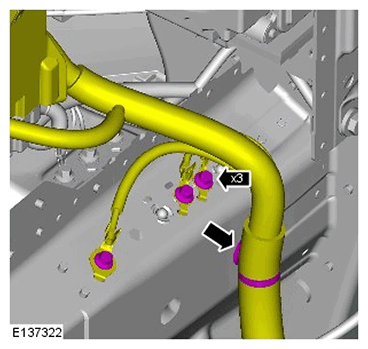

  27. G11587573

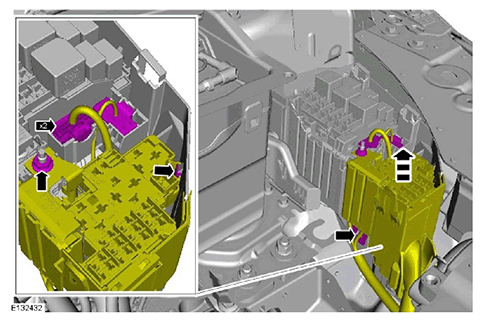

  28. G11593433

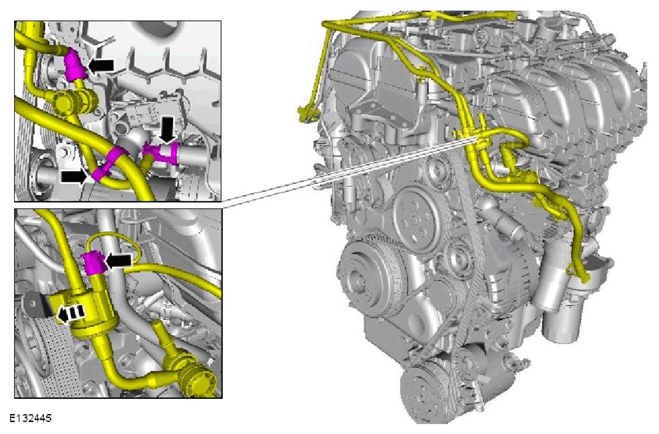

  29. G13002241

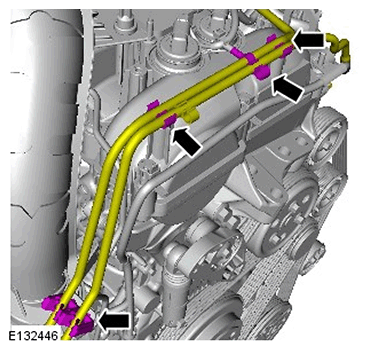

  30. G11587531

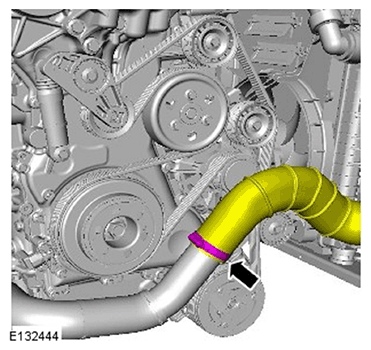

  31. G11587578

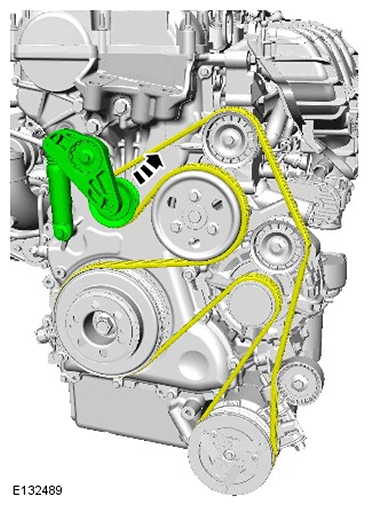

  32. G11587416

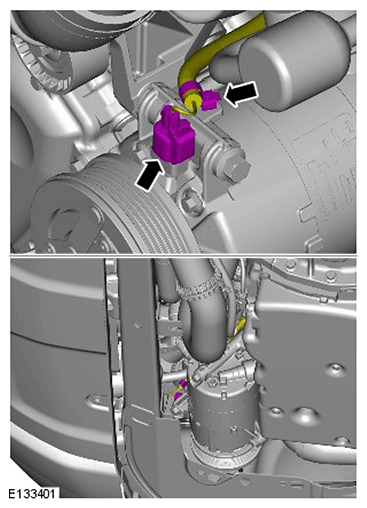

  33. G11587417

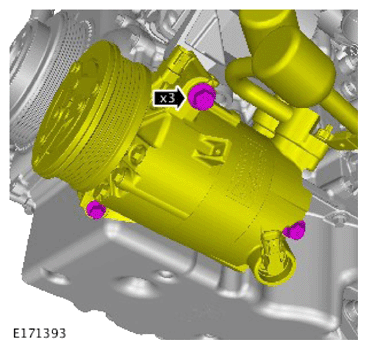

  34. G13631456

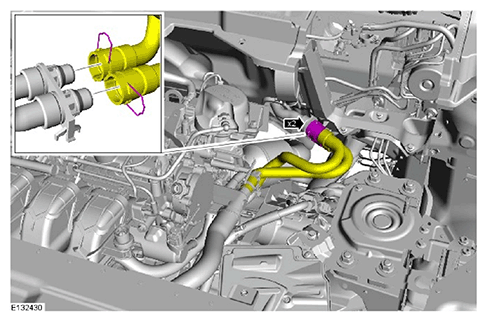

  35. G11587579

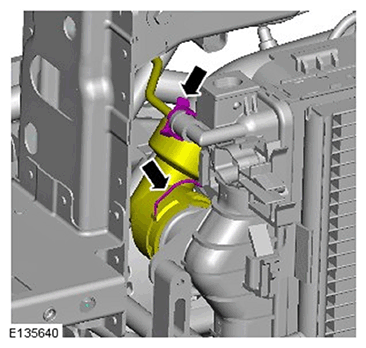

  36. G11588188
  37. NOTE: Discard the gasket.

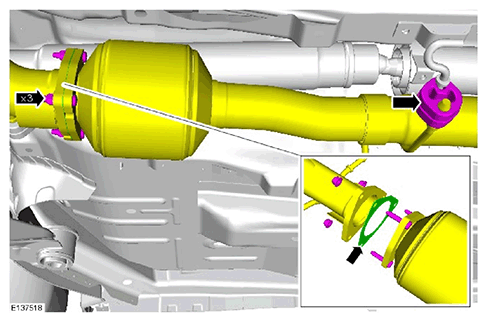

    G11587580

    Renew Part: Secondary catalytic converter gasket Quantity: 1  .

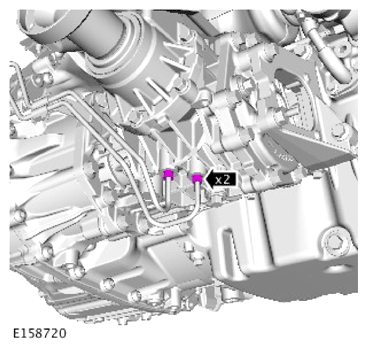

  38. G13631460

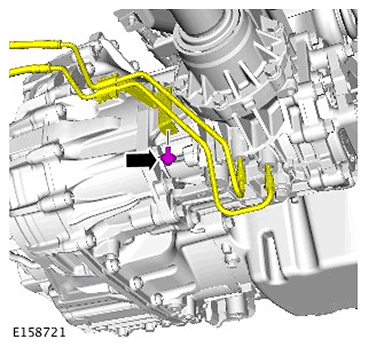

  39. G11719121
  40. CAUTION:
    • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
    • Mark the position of the driveshaft flange in relation to the drive pinion flange.
    • Make sure that the driveshaft is supported with suitable retaining straps.

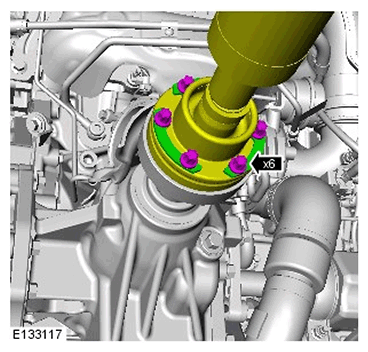

    G11587582
  41. WARNING: Be prepared to collect escaping fluid.
    CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

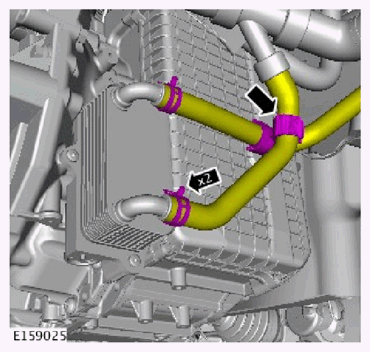

    G13003228

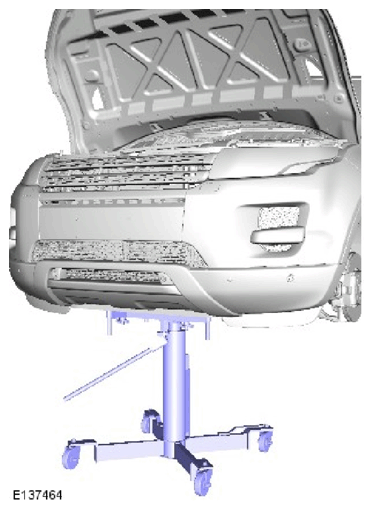

  42. G13002298

    Using a suitable hydraulic platform, support the engine and transmission assembly.

    General Equipment: Transmission jack

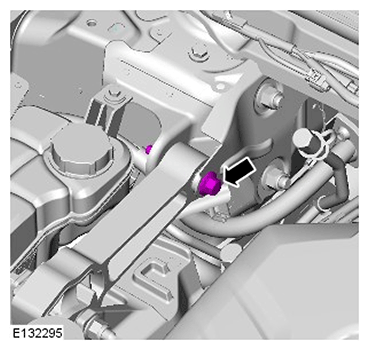

  43. G11587377
  44. NOTE: Loosen the bolt, but do not fully remove.

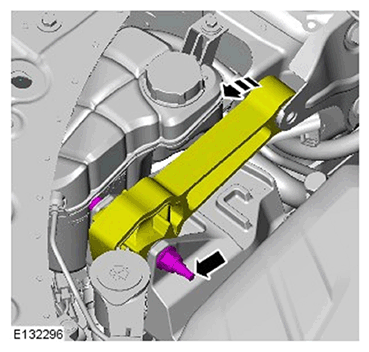

    G11587378

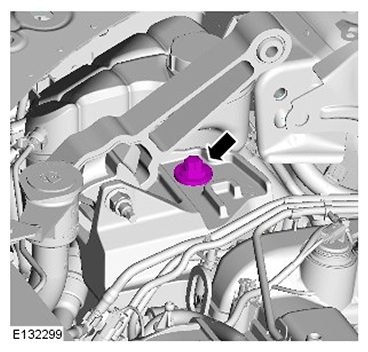

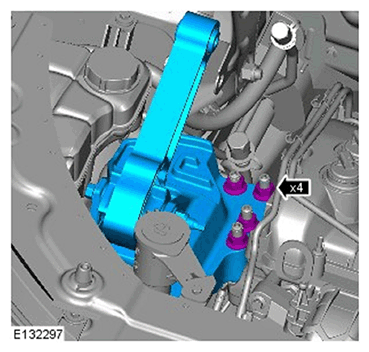

  45. G11587379
  46. G11587380
  47. CAUTION: Be prepared to collect escaping coolant.

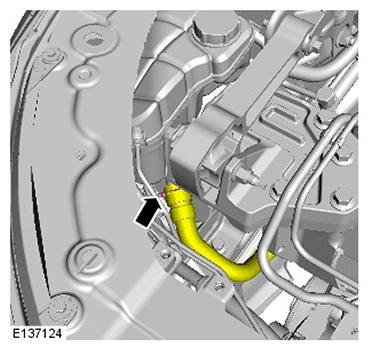

    G11587567

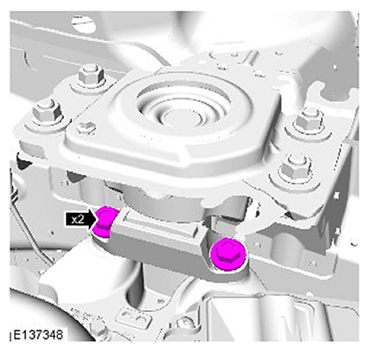

  48. G11587591

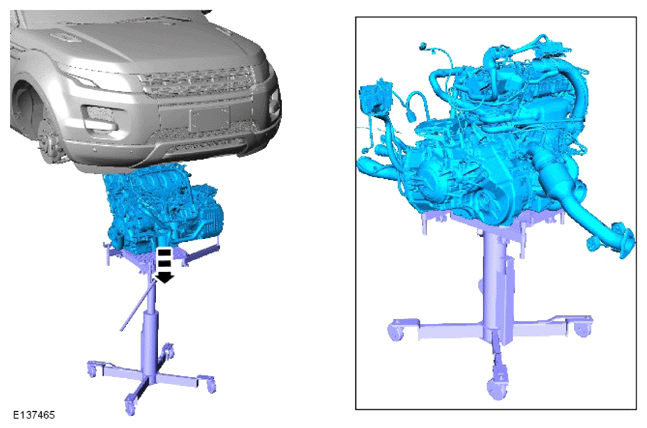

  49. G13631471

    General Equipment: Transmission jack
