Engine Oil Draining And Filling (G1347536): Filling

  1. CAUTION: Make sure that the component is clean, free of foreign material and lubricant.
    NOTE: Install a new oil pan drain plug.

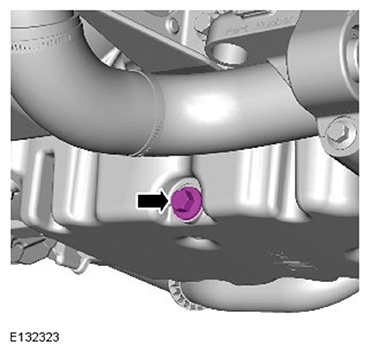

    G11587232

    Renew Part: Oil pan drain plug  Quantity: 1

    Torque  : 26 Nm

  2. Fill the engine with oil.

    Refer to: SPECIFICATIONS .

    • Start the engine and allow to run for at least 10 seconds.
    • Switch off the engine.
    • Check for leaks.

  4. Allow 10 minutes for the engine oil level to stabilize.

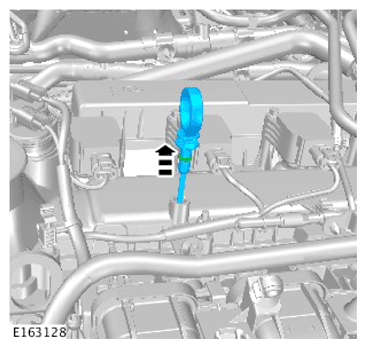

  5. G13631019

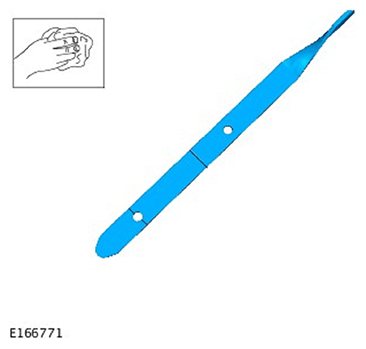

  6. G11587234

    Wipe clean the oil level gauge.

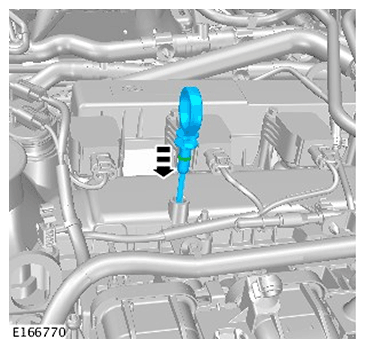

  7. G11587235
  8. G11734816

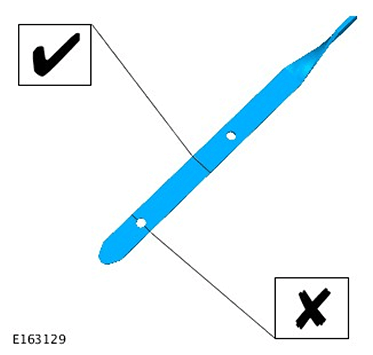

  9. G11587237

    Take a reading from the oil level gauge and, if necessary top up with engine oil.
