Engine Mount Alignment (G1815586): Adjustment

The following step(s) applies to:  Transmission mounting

  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Using a suitable hydraulic jack, support the transmission.

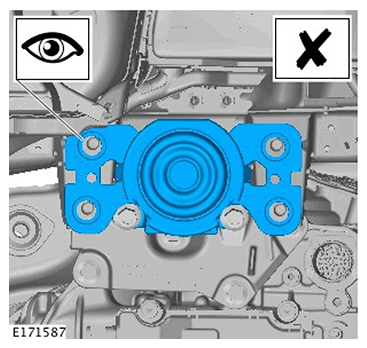

  3. G11587848

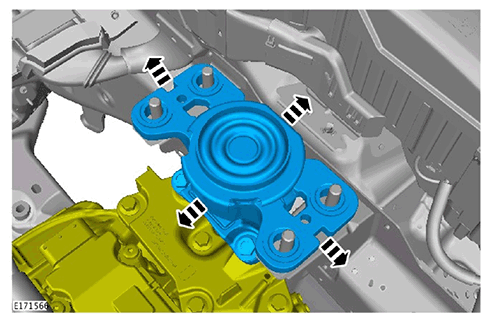

  4. G11587849

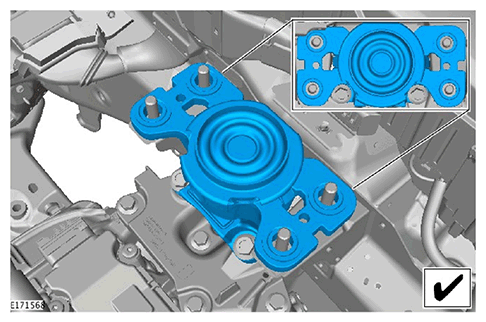

  5. G11587850

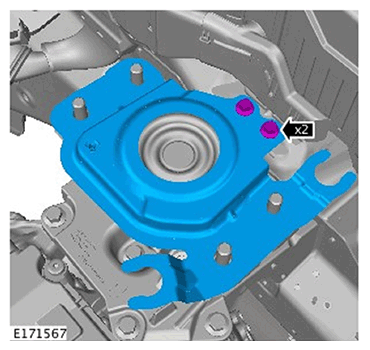

  6. CAUTION: Take extra care when installing the component.
    G11587851

    Torque  : 25 Nm

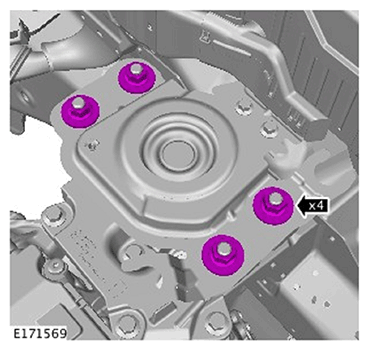

  7. CAUTION: Take extra care not to move the transmission mounting.
    G11587852

    Torque  : 80 Nm

    The following step(s) applies to:

    Engine mounting

  8. Using a suitable hydraulic jack, support the engine.

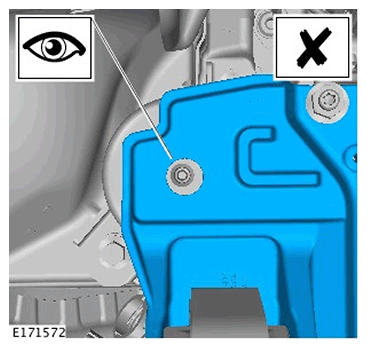

  9. G11587853

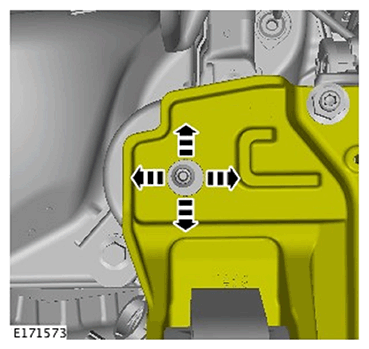

  10. G11587854

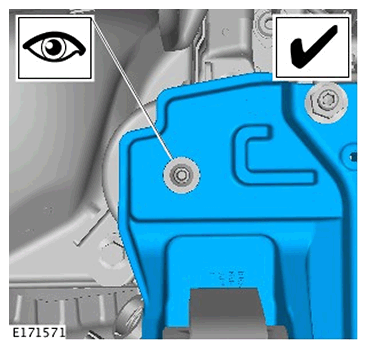

  11. G11587855

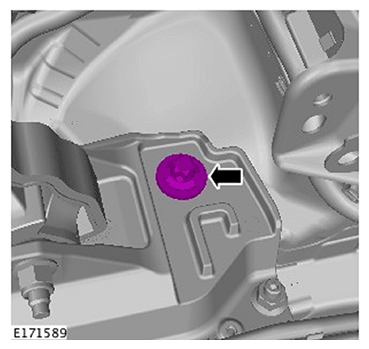

  12. G11587856

    Torque  : 80 Nm

  13. Do not install the engine upper support insulator at this point.

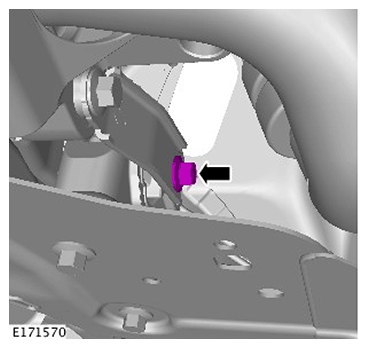

  14. NOTE: Loosen the bolt, but do not remove.
    G11587857
  15. Start the engine.
  16. CAUTION: Make sure that NEUTRAL is selected before starting this procedure.
    NOTE: Petrol engine shown, diesel engine similar.

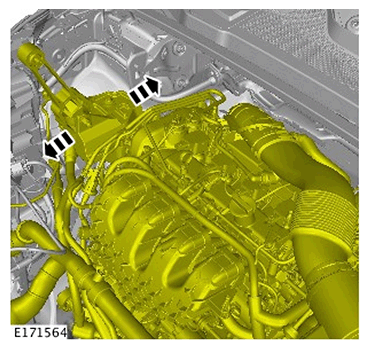

    G11587858

    Apply the accelerator pedal a minimum of 3 applications in quick succession, to settle the engine into the correct position.

  17. Turn off the engine.

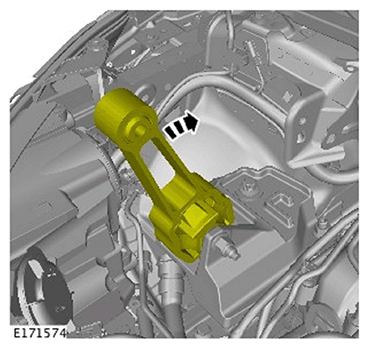

  18. G11587859

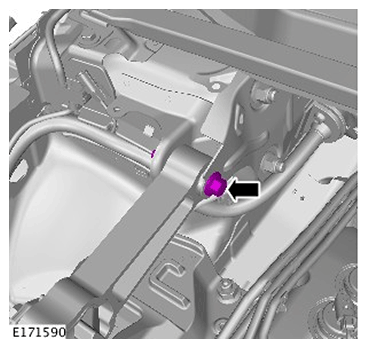

  19. G11587860

    Torque  : 110 Nm

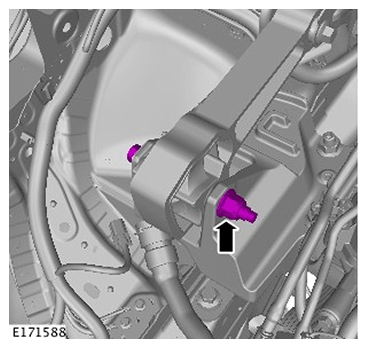

  20. G11587861

    Torque  : 110 Nm

  21. G11587857

    Torque

    Stage1: 50 Nm

    Stage2: 180°
